Features:

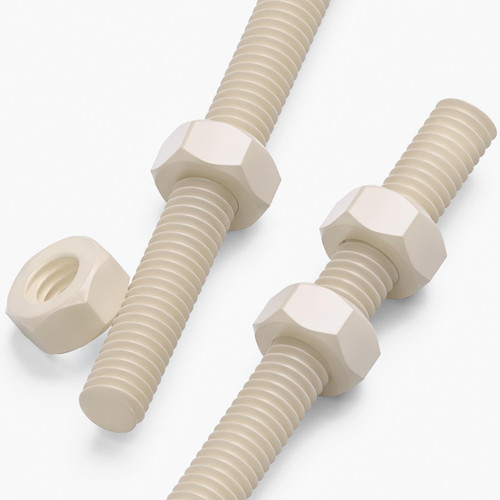

- 2x Threaded Rods. Material: Nylon Polyamide 66 (PA66). Type: Fully Threaded Plastic Rod. Length: 200mm. Diameter: 8mm. Pitch: 1.25mm. SKU: 973.
- Short M8 PA66 rods suit compact separator blocks and stand-offs where M6 is too small.
- Moisture note — PA66 can absorb some moisture, so allow for the working environment when checking fit.
- The 200 mm fully threaded form is easy to place in compact panels, housings and short spacer layouts.
- Use for short M8 spacers, panel separation and custom plastic-thread sections with careful tightening.
Product Summary:
These M8 x 200 mm natural PA66 threaded rods are supplied as 2 fully threaded plastic rods. PA66, also called nylon polyamide 66, is a tough engineering plastic with useful wear resistance and a low-friction surface for nut fitting in light assemblies. This size suits compact separator blocks, stand-offs and panel spacing, especially where a non-metallic threaded bar is easier to trim, position or identify than steel. The headless full-thread form lets compatible M8 nuts be positioned along the rod, or the rod can be cut carefully to shorter sections. PA66 can absorb a small amount of moisture, so check thread fit, tightening and the working environment before final use.
| Core Technical Details | |
|---|---|
| Product Type | Threaded Rods |
| Size (mm) | M8 x 200mm |
| Material | Nylon / Polyamide 66 |
| Colour | Natural |
| Quantity | 2 |
| Dimensions - mm | |
| Diameter -mm | 8.00 |
| Length - mm | 200 mm (L) |
| Width -mm | 8 mm (W) |
| Thickness / Depth -mm | 8 mm (D) |
| Pitch - mm | 1.25 |
| Dimensions - Inches Conversion | |
| Length -inches | 7.874 |
| Width -inches | 0.315 |
| Thickness / Depth -inches | 0.315 |
| Pitch - inches | 0.049 |
| Product Download Sheets | |
| Material Data Sheet | Nylon PA66 — Material Datasheet |
| Product Data Sheet | Nylon PA66 — Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Threaded-Rod-Stud.jpg |
| Bolt Dimensions | Stock Code: CR-Rod-07022-PA66 Material: Nylon Polyamide 66 Material Reference: PA66 Head/Drive Type: Fully Threaded Rod size: M8 x 200 D: 8 mm Pitch: 1.25 mm L: 200 mm |
| Width -mm | 8 mm (W) |
| Length - mm | 200 mm (L) |
| Thickness / Depth -mm | 8 mm (D) |
| Diameter -mm | 8.00 |
