Stock code 974

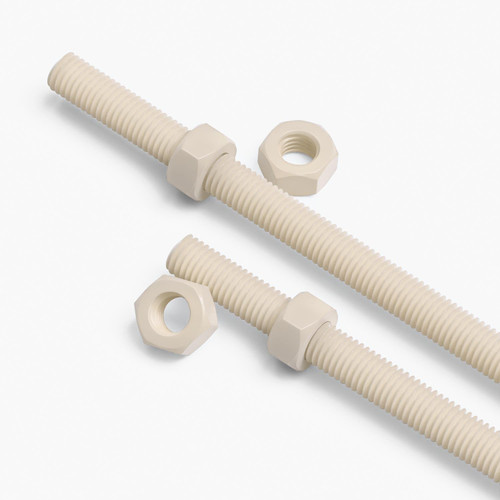

2x Natural Nylon PA66 M10 x 500 mm Threaded Rods, Plastic Studding + 4 Nuts
A closer look.
In stock
Check the fit. Technical specification
- Product type
- Threaded Rods
- Size (mm)
- M10 x 500mm
- Thread
- M10
- Material
- Nylon / Polyamide 66
- Colour
- Natural
- Pack size
- 2
- Diameter
- 10.00 mm
- Length
- 500 mm
- Width
- 10 mm
- Thickness / depth
- 10 mm
- Pitch
- 1.5 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Dimensions & documents
- Nylon PA66 — Material DatasheetPDF document
- Nylon PA66 — Screws & Bolts DatasheetPDF document
- Conformity SafetyPDF document
- Technical drawingDrawing, image
Bolt, nut and washer dimensions
Bolt
Material: Nylon Polyamide 66, Head/Drive Type: Fully Threaded Rod, size: M10 x 500, D: 10 mm, Pitch: 1.5 mm, L: 500 mm
Description
Features
- Pack of 2 threaded rods. Colour: Natural. Material: Nylon / Polyamide 66. Length: 500mm. Diameter: 10mm. Pitch: 1.5mm. 4 nuts included (2 per rod). SKU: 974.
- M10 PA66 provides a larger plastic thread for wider spacing and alignment work without using metal rod stock.
- The material offers good wear resistance for light assemblies where compatible nuts may be adjusted during fitting.
- The 500 mm fully threaded length can be used as supplied or cut carefully into application-specific sections.
- Use for larger light-duty spacers, positioning rods and custom threaded lengths; check plastic-thread suitability first. Also known as studding, allthread, threaded bar.
Product Summary
These M10 x 500 mm natural PA66 threaded rods are supplied as 2 fully threaded plastic rods. PA66, also called nylon polyamide 66, is a tough engineering plastic with good wear resistance. This size suits wider spacing, alignment rods and custom threaded lengths, where a non-metallic threaded bar is needed. The full-thread form lets compatible M10 nuts be positioned along the rod, or the rod can be cut carefully to shorter sections. PA66 can absorb moisture, so check thread fit, tightening and the working environment before final use. Supplied with 4 nuts.
