Stock code 970

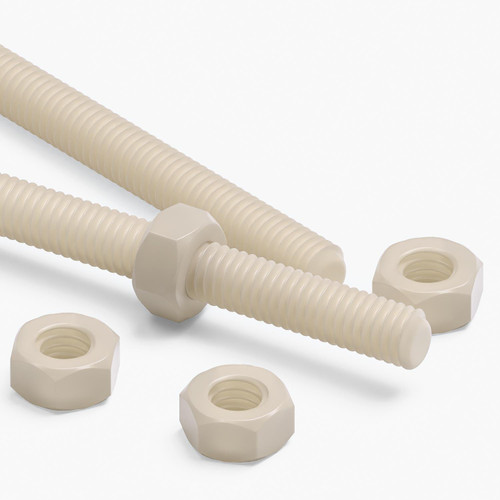

2x Natural Nylon PA66 M6 x 500 mm Threaded Rods, Plastic Studding + 4 Nuts
A closer look.
In stock
Check the fit. Technical specification
- Product type
- Threaded Rods
- Size (mm)
- M6 x 500mm
- Thread
- M6
- Material
- Nylon / Polyamide 66
- Colour
- Natural
- Pack size
- 2
- Diameter
- 6.00 mm
- Length
- 500 mm
- Width
- 6 mm
- Thickness / depth
- 6 mm
- Pitch
- 1 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Dimensions & documents
- Nylon PA66 — Material DatasheetPDF document
- Nylon PA66 — Screws & Bolts DatasheetPDF document
- Conformity SafetyPDF document
- Technical drawingDrawing, image
Bolt, nut and washer dimensions
Bolt
Material: Nylon Polyamide 66, Head/Drive Type: Fully Threaded Rod, size: M6 x 500, D: 6 mm, Pitch: 1.0 mm, L: 500 mm
Description
Features
- Pack of 2 threaded rods. Colour: Natural. Material: Nylon / Polyamide 66. Length: 500mm. Diameter: 6mm. Pitch: 1mm. 4 nuts included (2 per rod). SKU: 970.
- The M6 PA66 rod gives a broader plastic thread for larger spacers and alignment parts in a lightweight material.
- Nylon is tough but still plastic; avoid over-tightening and check suitability where thread pressure or temperature may vary.
- Fully threaded from end to end, allowing the M6 rod to be cut or used at its available 500 mm length.
- Use for larger M6 spacers, alignment pieces and cut-to-length threaded bars where a broader plastic thread is useful, with careful tightening and checks for plastic-thread suitability. Also known as studding, allthread, threaded bar.
Product Summary
These M6 x 500 mm natural PA66 threaded rods are supplied as 2 fully threaded plastic rods. PA66, also called nylon polyamide 66, is a tough engineering plastic with good wear resistance. This size suits M6 spacers, alignment pieces and cut-to-length threaded bars. Nylon can absorb moisture, so check thread fit and dimensional tolerance in damp or changing environments. Cut with suitable tools, avoid over-tightening the plastic thread and confirm material suitability before final use. Supplied with 4 nuts.
