Stock code 668

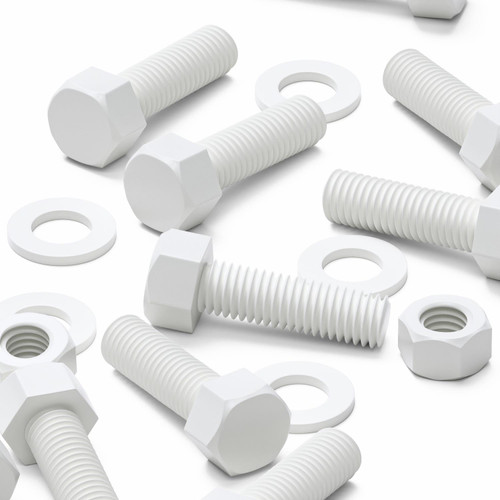

20x White PP Hex Head Plastic Screws & Bolts M12 x 40 mm, Nuts & Washers
A closer look.
The details, at a glance.
- Thread M12
- Length 40 mm
- Material PP / Polypropylene
- Colour White
- Pack size 20
In stock
Dimensions & documents
Check the fit. Technical specification
- Product type
- Hex Head Bolts
- Size (mm)
- M12 x 40mm
- Thread
- M12
- Material
- PP / Polypropylene
- Colour
- White
- Pack size
- 20
- Diameter
- 12.00 mm
- Length
- 40 mm
- Width
- 12 mm
- Thickness / depth
- 12 mm
- Pitch
- 1.75 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Bolt, nut and washer dimensions
Bolt
Head/Drive Type: Hexagon Head Bolt, size: M12 x 40, D: 12 mm, Pitch: 1.75 mm, L: 40 mm, HD: 17.79 mm, HH: 7.5 mm
Nut
Material: Polypropylene, Head/Drive Type: Hexagon Nut, size: M12, N (mm): M12, HN B: 17.87 mm, HN H: 10.59 mm
Washer
Material: Polypropylene, Head/Drive Type: Flat washer, size: M12, W0 A: 23.74 mm, W0 B: 13.14 mm, W0 T: 2.5 mm
Description
Features
- 20x Bolts, 20x Nuts, 20x Washers. Pantone White 11-0601-TCX. Material: PP. Type: Hex Head Bolts. Length: 40mm. Diameter: 12mm. Pitch: 1.75mm. Across flats: 18mm. Head height: 7.5mm. SKU: 668.
- Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
- Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is very resistant to absorbing moisture.
- These lightweight, non-corroding, insulating fixings are suited to chemical and wet environments, electrical enclosures and general assembly where metal would rust or react.
- The hex head sits above the surface for access during fitting, removal and refitting. Also known as hex bolts, hexagon head screws.
Product Summary
Pack of 20 white polypropylene hex head bolts, M12 x 40 mm, with 20 nuts and 20 washers. Thread pitch: 1.75 mm. Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is an economical, lightweight material with a high strength-to-weight ratio, inherent flexibility and moderate impact resistance. Polypropylene is very resistant to absorbing moisture and is a good electrical insulator. The material is non-corroding. Hex head bolts are also known as plastic bolts or plastic screws.
