Stock code 665

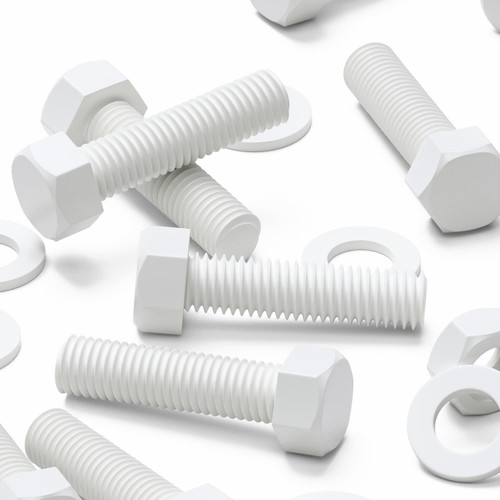

20x White PP Hex Head Plastic Screws & Bolts M10 x 40 mm, Nuts & Washers

20x White PP Hex Head Plastic Screws & Bolts M10 x 40 mm, Nuts & Washers

The details, at a glance.

  • Thread M10
  • Length 40 mm
  • Material PP / Polypropylene
  • Colour White
  • Pack size 20
Prices
Price per pack £13.49 ex VAT · £16.19 inc VAT
Current Stock:

    Adding to basket… Added to your basket.
    Request a quote

    In stock

    Need another length?

    20 mm40 mm

    Dimensions & documents

    Conformity Safety Polypropylene (PP) — Material Datasheet Polypropylene (PP) — Screws & Bolts Datasheet Technical drawing

    Check the fit. Technical specification

    Product type
    Hex Head Bolts
    Size (mm)
    M10 x 40mm
    Thread
    M10
    Material
    PP / Polypropylene
    Colour
    White
    Pack size
    20
    Diameter
    10.00 mm
    Length
    40 mm
    Width
    10 mm
    Thickness / depth
    10 mm
    Pitch
    1.5 mm

    Bolt, nut and washer dimensions

    Bolt

    Head/Drive Type: Hexagon Head Bolt, size: M10 x 40, D: 10 mm, Pitch: 1.5 mm, L: 40 mm, HD: 15.79 mm, HH: 6.4 mm

    Nut

    Material: Polypropylene, Head/Drive Type: Hexagon Nut, size: M10, N (mm): M10, HN B: 15.87 mm, HN H: 8.22 mm

    Washer

    Material: Polypropylene, Head/Drive Type: Flat washer, size: M10, W0 A: 19.74 mm, W0 B: 10.64 mm, W0 T: 2 mm

    Description

    Features

    • 20x Bolts, 20x Nuts, 20x Washers. Pantone White 11-0601-TCX. Material: PP. Type: Hex Head Bolts. Length: 40mm. Diameter: 10mm. Pitch: 1.5mm. Across flats: 16mm. Head height: 6.4mm. SKU: 665.
    • Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
    • Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is very resistant to absorbing moisture.
    • These lightweight, non-corroding, insulating fixings are suited to chemical and wet environments, electrical enclosures and general assembly where metal would rust or react.
    • The hex head sits above the surface for access during fitting, removal and refitting. Also known as hex bolts, hexagon head screws.

    Product Summary

    Pack of 20 white polypropylene hex head bolts, M10 x 40 mm, with 20 nuts and 20 washers. Thread pitch: 1.5 mm. Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is an economical, lightweight material with a high strength-to-weight ratio, inherent flexibility and moderate impact resistance. Polypropylene is very resistant to absorbing moisture and is a good electrical insulator. The material is non-corroding. Hex head bolts are also known as plastic bolts or plastic screws.
