Features:

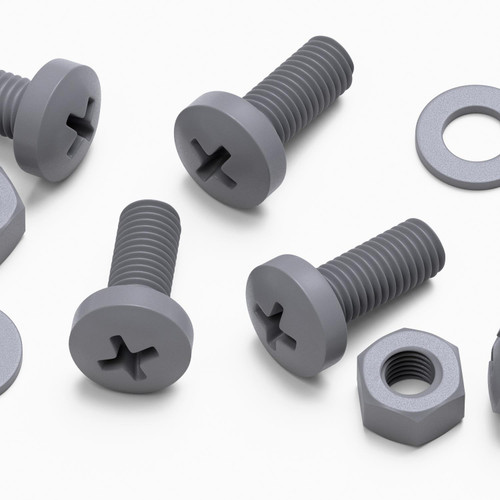

- 20 x Bolts, 20 x Nuts, 20 x Washers. Material: PP. Pantone PQ-18-0403TCX, Dark Gull Gray. Type: Cross Pan Head Bolts. Length: 20 mm. Diameter: 8 mm. Pitch: 1.25 mm. SKU: 316.
- Polypropylene’s chemical resistance includes resistance to acids, alkalis, and organic solvents.
- Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
- Ideal for chemical and wet environments, electrical enclosures, plumbing and general DIY assembly - a lightweight, non-corroding, electrically insulating fixing where metal bolts would rust or react.
- Secure and sturdy tightening with crosshead screwdriver.
Product Summary:
Polypropylene has good chemical resistance to a wide range of bases and acids and excellent impact strength. It is also economical, combining excellent physical, chemical, mechanical, thermal and electrical properties. In addition, it does not break after repeated bending and retains its resistance to moisture absorption, making it highly durable and reliable in a wide range of applications. Also known as plastic bolts and plastic screws.
| Core Technical Details | |
|---|---|
| Product Type | Pan Cross Head Bolts |
| Size (mm) | M8 x 20mm |
| Material | PP / Polypropylene |
| Colour | Grey |
| Quantity | 20 |
| Dimensions - mm | |
| Diameter -mm | 8.00 |
| Length - mm | 20 mm (L) |
| Width -mm | 8 mm (W) |
| Thickness / Depth -mm | 8 mm (D) |
| Pitch - mm | 1.25 |
| Dimensions - Inches Conversion | |
| Length -inches | 0.787 |
| Width -inches | 0.315 |
| Thickness / Depth -inches | 0.315 |
| Pitch - inches | 0.0492 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Polypropylene (PP) — Material Datasheet |
| Product Data Sheet | Polypropylene (PP) — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png |
| Bolt Dimensions | Head/Drive Type: Cross Pan Head Bolt, size: M8 x 20, D: 8 mm, Pitch: 1.25 mm, L: 20 mm, HD: 15.79 mm, HH: 5.85 mm |
| Nut Dimensions | Material: Polypropylene, Head/Drive Type: Hexagon Nut, size: M8, N (mm): M8, HN B: 12.87 mm, HN H: 6.62 mm |
| Washer Dimensions | Material: Polypropylene, Head/Drive Type: Flat washer, size: M8, W0 A: 15.78 mm, W0 B: 8.51 mm, W0 T: 1.6 mm |
| Width -mm | 8 mm (W) |
| Length - mm | 20 mm (L) |
| Thickness / Depth -mm | 8 mm (D) |
| Diameter -mm | 8.00 |
