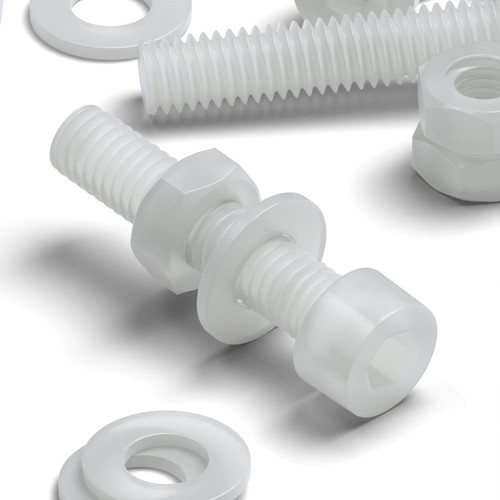

10x PVDF, Socket Head, M4 x 20mm, Bolts, Washers & Nuts - Machine Screws

£17.49 £15.74
(You save £1.75)
(No reviews yet) Write a Review
SKU:
522
UPC:
0727040189495
BC_IDs:
70, 50, 25, 2335, 2344, 2347, 2356, 2362, 2357, 2364, 2148, 3034, 3066, 1188, 2893, 3032, 2929, 1189, 2899, 2963
Bolt Dimensions:
Stock Code: CR01741PVDF , Material: Polyvinylidene fluoride , Material Reference: PVDF/S0 , Head/Drive Type: Socket Hex Head Bolt , Overall Size: M4 x 20 , Metric Size: M4 , D: 4 , Pitch: 0.7 , L: 20 , HD: 7.0 , HH: 3.91 , HS: 3.05 ,
Colour:
Natural
Diameter -mm:
4.00
Length - mm:
20 mm (L)
Length -inches:
0.787
Material:
PVDF / Polyvinylidene-fluoride
Nut Dimensions:
Stock Code: CR06389PVDF , Material: Polyvinylidene fluoride , Material Reference: PVDF/HN , Head/Drive Type: Hexagon Nut , Overall Size: M4 , N (mm): M4 , HN B: 6.89 , HN H: 3.05 ,
Pitch - inches:
0.028
Pitch - mm:
0.7
Product Data Sheet:
PVDF Screws & Bolts Datasheet
Product Type:
Socket Head Bolts
Quantity:
10
Safety Data Sheet:
Conformity Safety
Size (mm):
M4 x 20mm
Technical Drawing:
https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Socket-Head.png
Thickness / Depth -inches:
0.157
Thickness / Depth -mm:
4 mm (D)
Washer Dimensions:
Stock Code: CR06509PVDF , Material: Polyvinylidene fluoride , Material Reference: PVDF/W0 , Head/Drive Type: Flat Washer , Overall Size: M4 , W0 A: 8.82 , W0 B: 4.39 , W0 T: 0.8 ,
Width -inches:
0.157
Width -mm:
4 mm (W)
10x PVDF, Socket Head, M4 x 20mm, Bolts, Washers & Nuts - Machine Screws

Features:

  • 10x Bolts, 10x Nuts, 10x Washers. Material: PVDF. Type: Socket Head Bolts. Length: 20mm. Diameter: 4mm. Pitch: 0.7mm. SKU: 522.
  • Outstanding chemical and thermal resistance, as well as extraordinary piezoelectric and electro-mechanical properties.
  • PVDF is mechanically stronger than PTFE or PFA polymer. PVDF will absorb little or no water after 24 hours of exposure
  • It exhibits excellent mechanical strength, tensile strength, and abrasion resistance, balancing durability with flexibility. PVDF also has good resistance to wear and abrasions.
  • Repeated removal and refitting possible with excellent resistance to stripping in high torque applications.

Product Summary:

PVDF has the rare ferroelectric property of retaining its polarisation when the electric field is removed. PVDF is widely used in applications where high chemical resistance, thermal stability and piezoelectric properties are required. It has excellent resistance to acids, bases, solvents, ultraviolet (UV) and gamma radiation. PVDF offers remarkable fire resistance, high chemical resistance and exceptional mechanical strength. It performs well in tension, bending, torsion and compression, while maintaining elasticity, surface hardness & dimensional stability. Notably, PVDF absorbs little to no water after 24 hours of exposure and will not change in a wet environment.
