PTFE with a useful level temp. of between -73°C to 204°C proves valuable in many applications. It has superior thermal and electrical insulation properties and a low coefficient of friction.
They are nonconductive, lightweight, and resist wear due to their slippery surface.
Length is measured from under the head
Very low surface friction – the material slides easily, and is used in many forms as a lubricant.
High flexibility – very bendable even below freezing temperatures. Electrically Resistant – widely used as an electrical insulator
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.

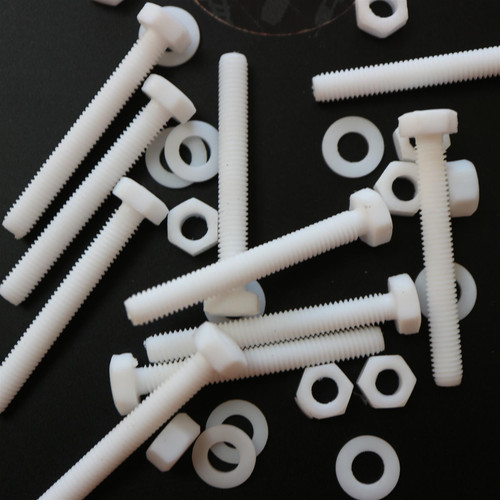

Product Details:
- Size_Reference: M5 x 40mm.
- Colour_Reference: Natural.
- Material_Reference: PTFE / Polytetrafluoroethylene.
- Type_Reference: Hex Head Bolts.
- Quantity_Reference: 10.
- Pitch_(mm): 0.8.
Dimensions (L x W x D mm):
40 x 5 x 5.Additional Specifications:
- Washer_Dimension: Stock Code: CR06556PTFE , Material: polytetrafluoroethylene , Material Reference: PTFE/W0 , Head/Drive Type: Flat washer , Overall Size: M5 , W0 A: 9.82 , W0 B: 5.39 , W0 T: 1.0 ,.
- Nut_Dimension: Stock Code: CR06420PTFE , Material: polytetrafluoroethylene , Material Reference: PTFE/HN , Head/Drive Type: Hexagon Nut , Overall Size: M5 , N (mm): M5 , HN B: 7.89 , HN H: 4.55 ,.
- Bolt_Dimension: Stock Code: CR00287PTFE , Material: polytetrafluoroethylene , Material Reference: PTFE/J0 , Head/Drive Type: Hexagon Head Bolt , Overall Size: M5 x 40 , Metric Size: M5 , D: 5 , Pitch: 0.8 , L: 40 , HD: 7.82 , HH: 3.5 ,.
