Stock code 914

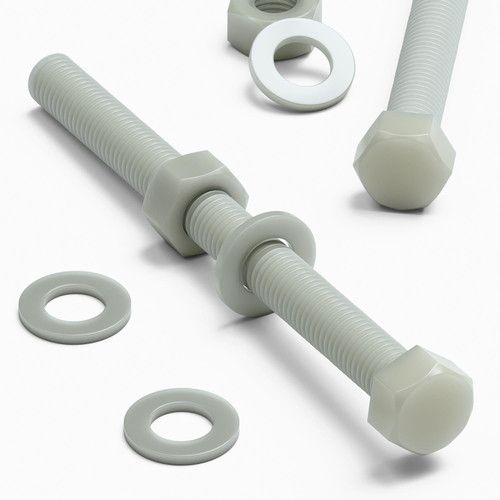

10x Natural Glass Filled Nylon Hex Head Screws M8 x 100 mm, Nuts & Washers
- Thread M8
- Length 100 mm
- Material Nylon PA 66 / 50% Glass Fibre Reinforced
- Colour Natural
- Pack size 10
Save at least 10% when you buy direct
In stock
Request a quoteOther lengths
Data sheets
Technical specification
- Product type
- Hex Head Bolts
- Size (mm)
- M8 x 100mm
- Thread
- M8
- Material
- Nylon PA 66 / 50% Glass Fibre Reinforced
- Colour
- Natural
- Pack size
- 10
- Diameter
- 8.00 mm
- Length
- 100 mm
- Width
- 8 mm
- Thickness / depth
- 8 mm
- Pitch
- 1.25 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Bolt, nut and washer dimensions
Bolt
Head/Drive Type: Hexagon Head Bolt, size: M8 x 100, D: 8 mm, Pitch: 1.25 mm, L: 100 mm, HD: 12.79 mm, HH: 5.3 mm
Nut
Material: Polyamide+fiberglass, Head/Drive Type: Hexagon Nut, size: M8, N (mm): M8, HN B: 12.87 mm, HN H: 6.62 mm
Washer
Material: Polyamide+fiberglass, Head/Drive Type: Flat Washer, size: M8, W0 A: 15.78 mm, W0 B: 8.51 mm, W0 T: 1.6 mm
Description
Features
- 10x Bolts, 10x Nuts, 10x Washers. Colour: natural. Material: PA 66 / 50% GF. Type: Hex Head Bolts. Length: 100mm. Diameter: 8mm. Pitch: 1.25mm. Across flats: 13mm. Head height: 5.3mm. SKU: 914.
- 50% glass-filled nylon demonstrates superior tensile and flexural strength, as well as impact resistance, enabling its use in load-bearing applications.
- PA66+GF demonstrates excellent chemical resistance to oils, fuels, and most solvents.
- This product contains 50% glass fibre.
- The hexagonal head is designed for fastening and removal with a wrench or socket. Also known as hex bolts, hexagon head screws.
Product Summary
While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF is superior to that of PA66, meaning that the composite can withstand higher temperatures before beginning to deform under load. The composite exhibits reduced moisture absorption, a significant improvement over PA66's susceptibility to moisture. Common applications include automotive components, industrial machinery and consumer goods where high strength and thermal resistance are required. Hex head bolts are also known as plastic bolts or plastic screws.
