Features:
- 10x Bolts, 10x Nuts, 10x Washers. Pantone 3C Black. Material: PA 66 / Nylon. Type: Hex Head Bolts. Length: 100mm. Diameter: 8mm. Pitch: 1.25mm. SKU: 682.
- Made from tough, lightweight nylon, these fasteners offer excellent electrical insulating and non-corrosive properties
- Nylon is exceptionally strong and exhibits high tensile strength, as well as high wear and impact resistance.
- Nylon is resistant to most organic solvents, fuels, oils, weak acids and bases.
- Repeated removal and refitting with excellent resistance to stripping in high torque applications.
Product Summary:

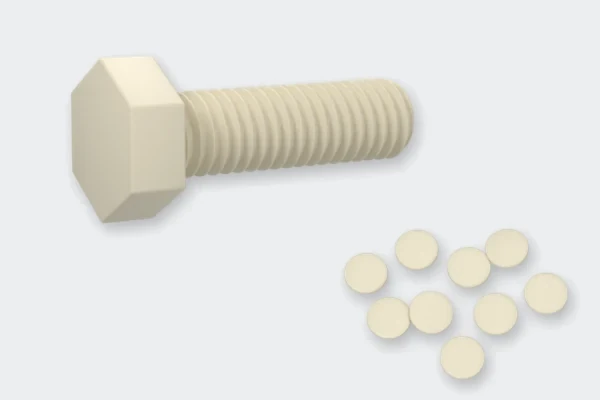

Nylon has a very low coefficient of friction, making it popular for applications where wear resistance is required, such as fasteners and cable ties. It is one of the most widely used plastics in the world, with all grades retaining high strength and offering exceptional wear resistance. It has corrosion, chemical and electrical resistance. Tough and lightweight, Nylon Hex Bolt fasteners offer excellent electrical insulation properties and are non-corrosive and non-magnetic. An alternative 50% glass filled nylon version is also available.
| Core Technical Details | |
|---|---|
| Product Type | Hex Head Bolts |
| Size (mm) | M8 x 100mm |
| Material | Nylon / Polyamide 66 |
| Colour | Black |
| Quantity | 10 |
| Dimensions - mm | |
| Diameter -mm | 8.00 |
| Length - mm | 100 mm (L) |
| Width -mm | 8 mm (W) |
| Thickness / Depth -mm | 8 mm (D) |
| Pitch - mm | 1.25 |
| Dimensions - Inches Conversion | |
| Length -inches | 3.937 |
| Width -inches | 0.315 |
| Thickness / Depth -inches | 0.315 |
| Pitch - inches | 0.049 |
| Product Download Sheets | |
| Material Data Sheet | Nylon Datasheet |
| Product Data Sheet | Nylon PA66 Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png |
| Bolt Dimensions | Stock Code: CR00960PA66 Head/Drive Type: Hexagon Head Bolt size: M8 x 100 D: 8 mm Pitch: 1.25 mm L: 100 mm HD: 12.79 mm HH: 5.3 mm |
| Nut Dimensions | Stock Code: CR06439 PA66 Material: Polyamide66 Material Reference: PA66/HN Head/Drive Type: Hexagon Nut size: M8 N (mm): M8 HN B: 12.87 mm HN H: 6.62 mm |
| Washer Dimensions | Stock Code: CR06626PA66 Material: Polyamide66 Material Reference: PA66/W0 Head/Drive Type: Flat washer size: M8 W0 A: 15.78 mm W0 B: 8.51 mm W0 T: 1.6 mm |
| Width -mm | 8 mm (W) |
| Length - mm | 100 mm (L) |
| Thickness / Depth -mm | 8 mm (D) |
| Diameter -mm | 8.00 |
