Stock code 682

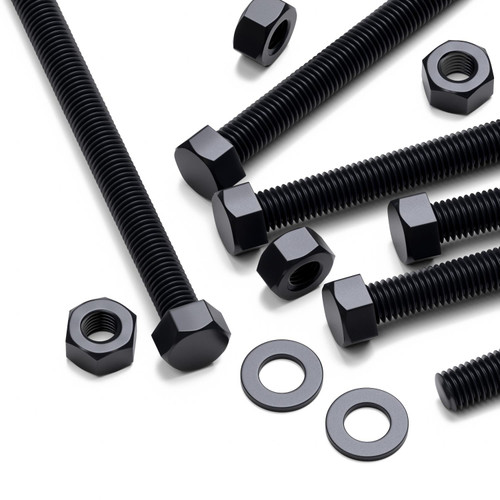

10x Black Nylon Hex Head Plastic Screws & Bolts M8 x 100 mm, Nuts & Washers
A closer look.
The details, at a glance.
- Thread M8
- Length 100 mm
- Material Nylon / Polyamide 66
- Colour Black
- Pack size 10
In stock
Need another length?
Dimensions & documents
Check the fit. Technical specification
- Product type
- Hex Head Bolts
- Size (mm)
- M8 x 100mm
- Thread
- M8
- Material
- Nylon / Polyamide 66
- Colour
- Black
- Pack size
- 10
- Diameter
- 8.00 mm
- Length
- 100 mm
- Width
- 8 mm
- Thickness / depth
- 8 mm
- Pitch
- 1.25 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Bolt, nut and washer dimensions
Bolt
Head/Drive Type: Hexagon Head Bolt, size: M8 x 100, D: 8 mm, Pitch: 1.25 mm, L: 100 mm, HD: 12.79 mm, HH: 5.3 mm
Nut
Material: Polyamide66, Head/Drive Type: Hexagon Nut, size: M8, N (mm): M8, HN B: 12.87 mm, HN H: 6.62 mm
Washer
Material: Polyamide66, Head/Drive Type: Flat washer, size: M8, W0 A: 15.78 mm, W0 B: 8.51 mm, W0 T: 1.6 mm
Description
Features
- 10x Bolts, 10x Nuts, 10x Washers. Pantone 3C Black. Material: Nylon / PA66. Type: Hex Head Bolts. Length: 100mm. Diameter: 8mm. Pitch: 1.25mm. Across flats: 13mm. Head height: 5.3mm. SKU: 682.
- Made from tough, lightweight nylon, these fasteners offer excellent electrical insulating and non-corrosive properties.
- Nylon PA66 offers high tensile strength, wear resistance and impact resistance.
- Nylon resists many organic solvents, fuels, oils, weak acids and bases.
- The hex head sits above the surface for access during fitting, removal and refitting. Also known as hex bolts, hexagon head screws.
Product Summary
Pack of 10 black nylon PA66 hex head bolts, M8 x 100 mm, with 10 nuts and 10 washers. Thread pitch: 1.25 mm. Nylon PA66 is used where wear resistance is required, including plastic fasteners. It is strong, lightweight and offers good impact resistance, chemical resistance and electrical insulation. These black nylon hex head bolts are non-corrosive and non-magnetic, with matching nuts and washers supplied for non-metallic fastening applications.
