Features:

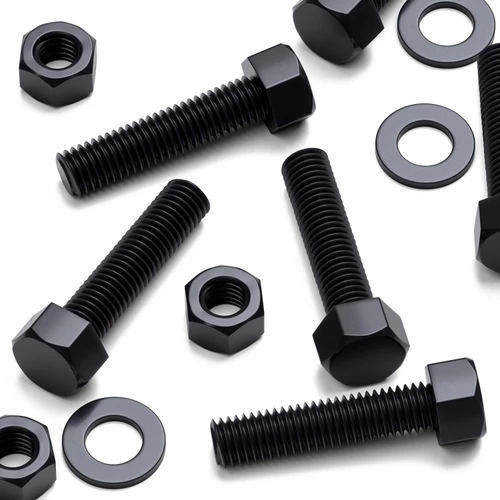

- 10x Bolts, 10x Nuts, 10x Washers. Pantone 3C Black. Material: Nylon / PA66. Type: Hex Head Bolts. Length: 50 mm. Diameter: 12 mm. Pitch: 1.75 mm. SKU: 687.
- Made from tough, lightweight nylon, these fasteners provide electrical insulation and corrosion resistance.
- Nylon PA66 offers high tensile strength, wear resistance and impact resistance.
- Nylon resists many organic solvents, fuels, oils, weak acids and bases.
- Suitable for repeated removal and refitting, with good resistance to thread stripping in higher-torque applications. Hex head sits above the surface for access during fitting and removal.
Product Summary:
Nylon PA66 has a low coefficient of friction and is used where wear resistance is required, including plastic fasteners. It is strong, lightweight and offers good impact resistance, chemical resistance and electrical insulation. These black nylon hex head bolts are non-corrosive and non-magnetic, with matching nuts and washers supplied for non-metallic fastening applications.
| Core Technical Details | |
|---|---|
| Product Type | Hex Head Bolts |
| Size (mm) | M12 x 50mm |
| Material | Nylon / Polyamide 66 |
| Colour | Black |
| Quantity | 10 |
| Dimensions - mm | |
| Diameter -mm | 12.00 |
| Length - mm | 50 mm (L) |
| Width -mm | 12 mm (W) |
| Thickness / Depth -mm | 12 mm (D) |
| Pitch - mm | 1.75 |
| Dimensions - Inches Conversion | |
| Length -inches | 1.969 |
| Width -inches | 0.472 |
| Thickness / Depth -inches | 0.472 |
| Pitch - inches | 0.0689 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Nylon PA66 — Material Datasheet |
| Product Data Sheet | Nylon PA66 — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png |
| Bolt Dimensions | Head/Drive Type: Hexagon Head Bolt, size: M12 x 50, D: 12 mm, Pitch: 1.75 mm, L: 50 mm, HD: 17.79 mm, HH: 7.5 mm |
| Nut Dimensions | Material: Polyamide66, Head/Drive Type: Hexagon Nut, size: M12, N (mm): M12, HN B: 17.87 mm, HN H: 10.59 mm |
| Washer Dimensions | Material: Polyamide66, Head/Drive Type: Flat washer, size: M12, W0 A: 23.74 mm, W0 B: 13.14 mm, W0 T: 2.5 mm |
| Width -mm | 12 mm (W) |
| Length - mm | 50 mm (L) |
| Thickness / Depth -mm | 12 mm (D) |
| Diameter -mm | 12.00 |
