Stock code 674

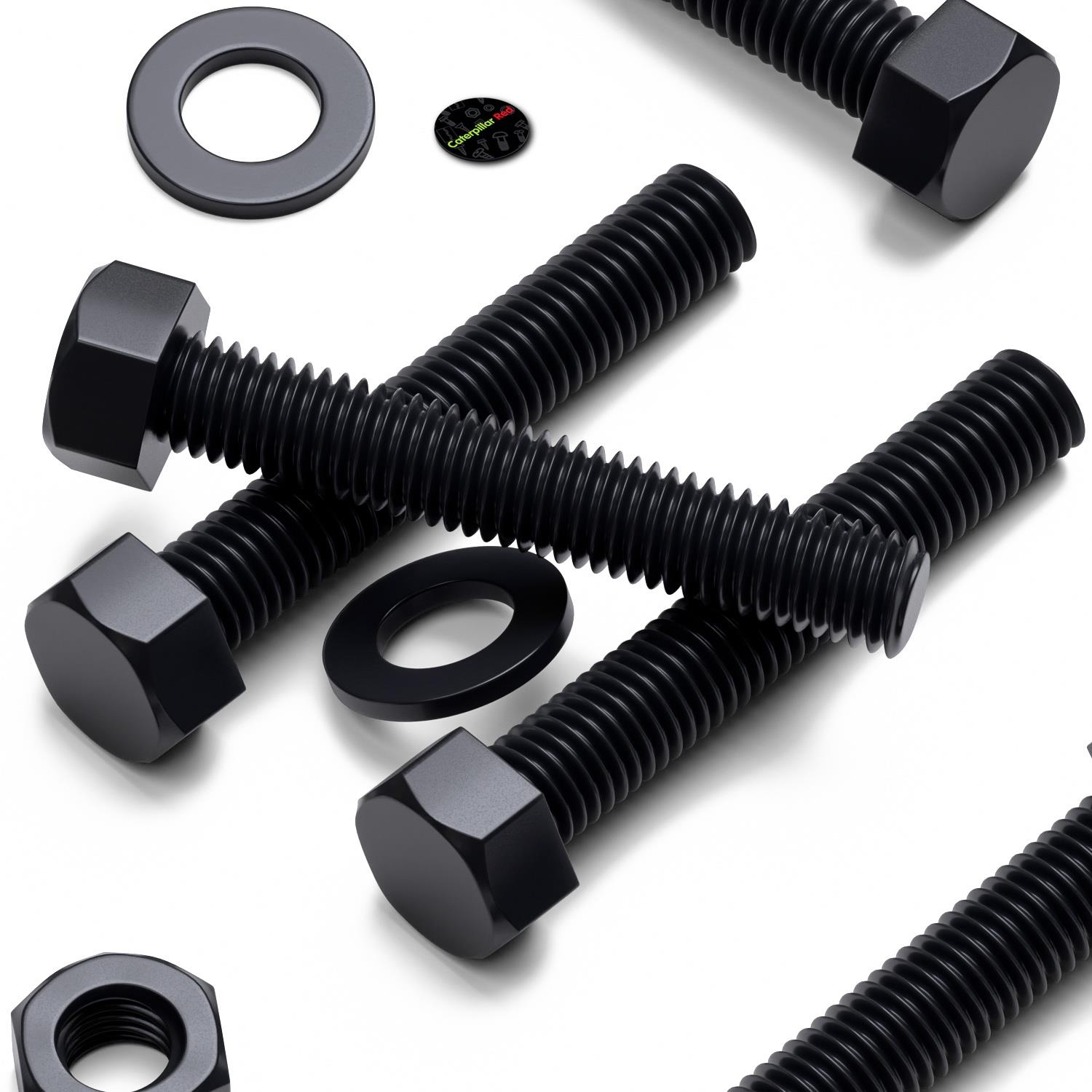

10x Black PP Hex Head Plastic Screws & Bolts M10 x 60 mm, Nuts & Washers
- Thread M10
- Length 60 mm
- Material PP / Polypropylene
- Colour Black
- Pack size 10
Save at least 10% when you buy direct
In stock
Request a quoteData sheets
Technical specification
- Product type
- Hex Head Bolts
- Size (mm)
- M10 x 60mm
- Thread
- M10
- Material
- PP / Polypropylene
- Colour
- Black
- Pack size
- 10
- Diameter
- 10.00 mm
- Length
- 60 mm
- Width
- 10 mm
- Thickness / depth
- 10 mm
- Pitch
- 1.5 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.

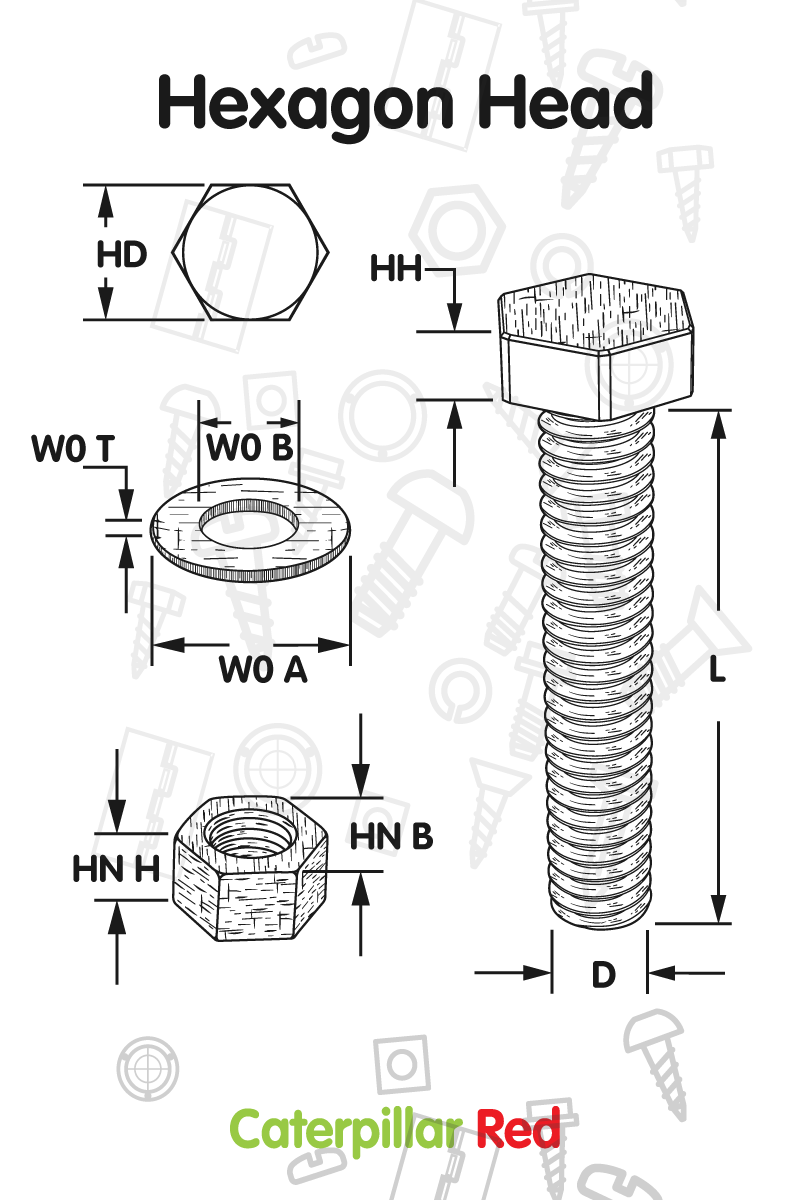

Bolt, nut and washer dimensions
Bolt
Head/Drive Type: Hexagon Head Bolt, size: M10 x 60, D: 10 mm, Pitch: 1.5 mm, L: 60 mm, HD: 15.79 mm, HH: 6.4 mm
Nut
Material: Polypropylene, Head/Drive Type: Hexagon Nut, size: M10, N (mm): M10, HN B: 15.87 mm, HN H: 8.22 mm
Washer
Material: Polypropylene, Head/Drive Type: Flat washer, size: M10, W0 A: 19.74 mm, W0 B: 10.64 mm, W0 T: 2 mm
Description
Features:
- 10x Bolts, 10x Nuts, 10x Washers. Pantone 3C Black. Material: PP. Type: Hex Head Bolts. Length: 60mm. Diameter: 10mm. Pitch: 1.5mm. Across flats: 16mm. Head height: 6.4mm. SKU: 674.
- Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
- Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is very resistant to absorbing moisture.
- These lightweight, non-corroding, insulating fixings are suited to chemical and wet environments, electrical enclosures and general assembly where metal would rust or react.
- The hex head sits above the surface for access during fitting, removal and refitting. Also known as hex bolts, hexagon head screws.
Product Summary:
Pack of 10 black polypropylene hex head bolts, M10 x 60 mm, with 10 nuts and 10 washers. Thread pitch: 1.5 mm. Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is an economical, lightweight material with a high strength-to-weight ratio, inherent flexibility and moderate impact resistance. Polypropylene is very resistant to absorbing moisture and is a good electrical insulator. The material is non-corroding. Hex head bolts are also known as plastic bolts or plastic screws.
