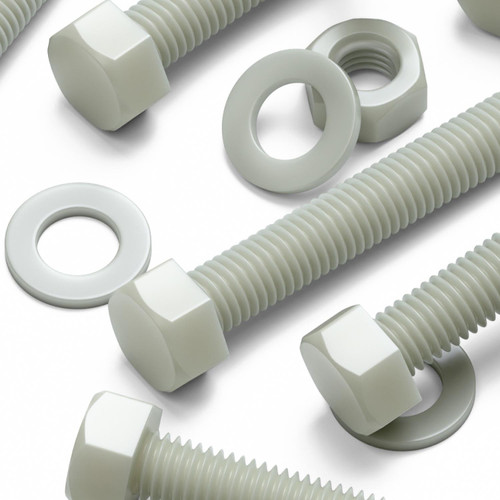

10x Glass Filled, Reinforced Super Nylon, Hex Head, M10 x 60mm, Plastic Bolts, Nuts & Washers

£21.66 £19.49
(You save £2.17)
(No reviews yet) Write a Review
SKU:
713
UPC:
5060744291473
BC_IDs:
70, 48, 25, 2408, 2411, 2577, 2598, 2695, 2599, 2704, 2148, 3034, 3066, 1188, 2815, 2817, 2882, 1189, 2899, 3001
Bolt Dimensions:
Stock Code: CR01302PA66+GF , Material: Polyamide+fiberglass , Material Reference: PA66+GF/J0 , Head/Drive Type: Hexagon Head Bolt , Overall Size: M10 x 60 , Metric Size: M10 , D: 10 , Pitch: 1.5 , L: 60 , HD: 15.79 , HH: 6.4 ,
Colour:
Natural
Diameter -mm:
10.00
Length - mm:
60 mm (L)
Length -inches:
2.362
Material:
Nylon PA 66 / 50% Glass Fibre Reinforced
Material Data Sheet:
Nylon GF50 Datasheet
Nut Dimensions:
Stock Code: CR06361PEEK , Material: Polyether ether ketone , Material Reference: PEEK/HN , Head/Drive Type: Hexagon Nut , Overall Size: M10 , N (mm): M10 , HN B: 15.87 , HN H: 8.22 ,
Pitch - inches:
0.059
Pitch - mm:
1.5
Product Data Sheet:
Nylon PA66 50% GF Screws & Bolts Datasheet
Product Type:
Hex Head Bolts
Quantity:
10
Safety Data Sheet:
Conformity Safety
Size (mm):
M10 x 60mm
Technical Drawing:
https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png
Thickness / Depth -inches:
0.394
Thickness / Depth -mm:
10 mm (D)
Washer Dimensions:
Stock Code: CR06529PA+GF , Material: Polyamide+fiberglass , Material Reference: PA+GF/W0 , Head/Drive Type: Flat Washer , Overall Size: M10 , W0 A: 19.74 , W0 B: 10.64 , W0 T: 2.0 ,
Width -inches:
0.394
Width -mm:
10 mm (W)

Features:

  • 10x Bolts, 10x Nuts, 10x Washers. Material: PA 66 / 50% GF. Type: Hex Head Bolts. Length: 60mm. Diameter: 10mm. Pitch: 1.5mm. SKU: 713.
  • Our 50% GF demonstrates superior tensile and flexural strength, as well as impact resistance, enabling its use in load-bearing applications.
  • PA66+GF demonstrates excellent chemical resistance to oils, fuels, and most solvents.
  • PA66+GF is manufactured by compounding glass fibers with polyamide 66, typically in concentrations ranging from 15% to 60% by weight.
  • Hexagonal head designed for fastening and removal with a wrench or socket. Robust torque transfer for the most demanding fastening applications.

Product Summary:

While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF is superior to that of PA66, meaning that the composite can withstand higher temperatures before beginning to deform under load. The composite exhibits reduced moisture absorption, a significant improvement over PA66's susceptibility to moisture. Common applications include automotive components, industrial machinery and consumer goods where high strength and thermal resistance are required. Hex Bolts & Screws also known as plastic bolts, plastic screws, plastic bolt, plastic screw.
