Features:

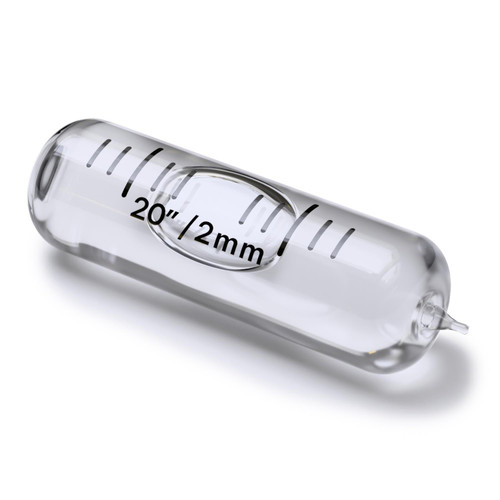

- Quantity: 1. Material: Borosilicate Glass. Type: Tube Spirit Vial Levels. Fluid: Clear. Length (L): 35mm. Diameter (D): 11mm. With Nib (+2mm). SKU: GG-TE0N-H8JI.
- Sensitivity: 20″ / 2 mm.
- Borosilicate glass has low thermal expansion, helping it resist cracking during temperature changes.
- The bubble level's sensitivity is measured by the tilt required to move the bubble 2 mm, with lower angles indicating higher sensitivity.
- The fluid-filled vial has permanently baked ceramic lines to indicate readings. The glass is stress-relieved. Also known as level vials, tubular vials, spirit level inserts.
Product Summary:
Manufactured using borosilicate glass, each spirit bubble level vial has ceramic lines to indicate readings. These lines are permanently baked for durability. Vials are stress-relieved and fluid-filled. They can be used as replacements for spirit bubble levels, as spare parts or on their own.
| Core Technical Details | |
|---|---|
| Product Type | Tube Spirit Vial Levels |
| Size (mm) | 35mm x 11mm |
| Material | Borosilicate Glass |
| Colour | Clear |
| Quantity | 1 |
| Level Has Nib? | Yes |
| Dimensions - mm | |
| Diameter -mm | 11 mm (W) |
| Length - mm | 35 mm (L) |
| Thickness / Depth -mm | 11 mm (D) |
| Dimensions - Inches Conversion | |
| Length -inches | 1.378 |
| Width -inches | 0.433 |
| Thickness / Depth -inches | 0.433 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Tube Vials — Material Sheet |
| Product Data Sheet | Tube Vials — Product Sheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/Vials-30mm-38mm-Clear-With-Nib.png |
| Level Dimensions | Material: Borosilicate Glass Type: Tube Spirit Vial Levels Fluid: Clear Length(L): 35 mm Diameter(D): 11 mm SKU: GG-TE0N-H8JI With Nib (+2mm). |
| Length - mm | 35 mm (L) |
| Thickness / Depth -mm | 11 mm (D) |
| Diameter -mm | 11 mm (W) |
