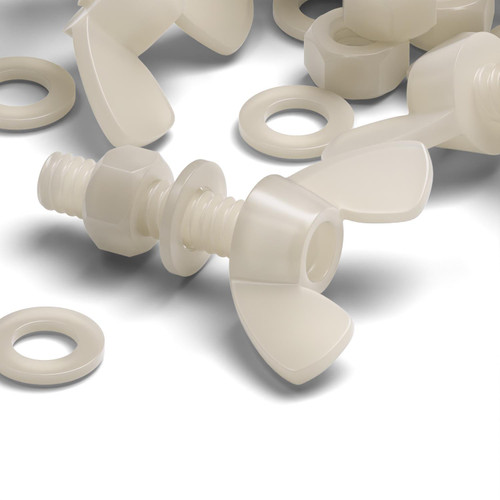

Butterfly Wing Screw
50x Bolts, 50x Washers, 50x Nuts. Nylon bolts are non-magnetic
Made from tough, lightweight nylon, these fasteners offer excellent electrical insulating and non-corrosive properties
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M5 x 20mm.
- Colour_Reference: Natural.

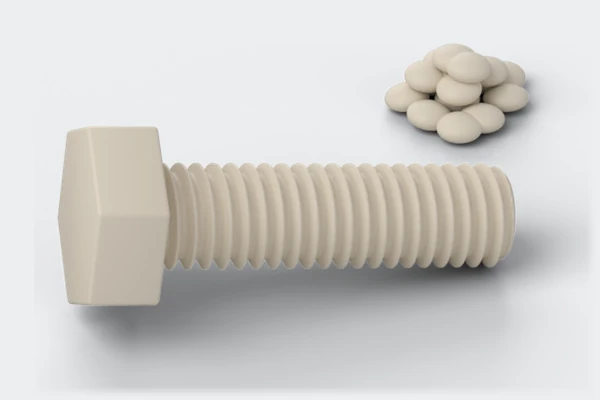

- Material_Reference: Nylon / Polyamide 66.
- Type_Reference: Butterfly Screw.
- Quantity_Reference: 50.
- Pitch_(mm): 0.8.
Dimensions (L x W x D mm):
20 x 5 x 5.Additional Specifications:
- Washer_Dimension: Stock Code: CR06624PA66 , Material: Polyamide66 , Material Reference: PA66/W0 , Head/Drive Type: Flat washer , Overall Size: M5 , W0 A: 9.82 , W0 B: 5.39 , W0 T: 1.0 ,.
- Nut_Dimension: Stock Code: CR06437 PA66 , Material: Polyamide66 , Material Reference: PA66/HN , Head/Drive Type: Hexagon Nut , Overall Size: M5 , N (mm): M5 , HN B: 7.89 , HN H: 4.55 ,.
- Bolt_Dimension: Stock Code: CR06915PA66 , Material: Polyamide66 , Material Reference: PA66 , Head/Drive Type: Butterfly Bolt Butter Fly Screw , Overall Size: M5 x 20 , Metric Size: M5 , D: 5 , Pitch: 0.8 , L: 20 , HH: 12.0 , TH: 6 , WL: 24.9 ,.
