Stock code 827

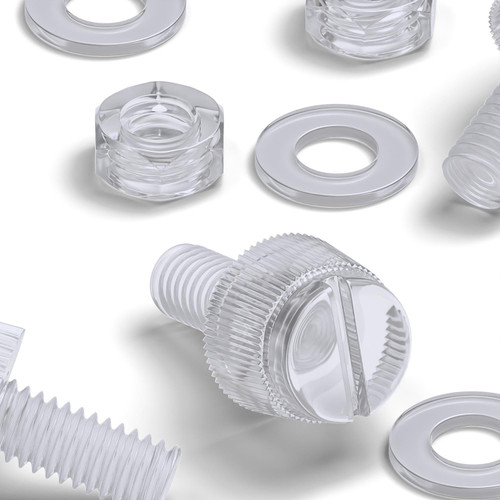

50x Clear Acrylic Slotted Knurled Thumbscrews M4 x 10 mm, Nuts & Washers
A closer look.
In stock
Check the fit. Technical specification
- Product type
- Thumbscrews
- Size (mm)
- M4 x 10mm
- Thread
- M4
- Material
- Acrylic / Polycarbonate
- Colour
- Clear
- Pack size
- 50
- Diameter
- 4.00 mm
- Length
- 10 mm
- Width
- 4 mm
- Thickness / depth
- 4 mm
- Pitch
- 0.7 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Dimensions & documents
- Conformity SafetyPDF document
- Polycarbonate (PC) — Material DatasheetPDF document
- Polycarbonate (PC) — Screws & Bolts DatasheetPDF document
- Technical drawingDrawing, image
Bolt, nut and washer dimensions
Bolt
Head/Drive Type: Slotted Knurled Thumbscrew, size: M4 x 10, D: 4 mm, Pitch: 0.7 mm, L: 10 mm, HD: 9.77 mm, HH: 7.11 mm
Nut
Material: Polycarbonate, Head/Drive Type: Hexagon Nut, size: M4, N (mm): M4, HN B: 6.89 mm, HN H: 3.05 mm
Washer
Material: Polycarbonate, Head/Drive Type: Flat washer, size: M4, W0 A: 8.82 mm, W0 B: 4.39 mm, W0 T: 0.8 mm
Description
Features
- 50x thumbscrews, 50x nuts, 50x washers. Colour: Clear. Material: Acrylic / PC. Type: Slotted knurled. Thread: M4. Length: 10mm. Diameter: 4mm. Pitch: 0.7mm. SKU: 827.
- The knurled design provides easy grip and quick hand-tightening without the need for additional tools.
- Acrylic and polycarbonate are similar thermoplastics often used interchangeably; acrylic provides good strength and UV resistance, while polycarbonate offers higher impact and heat resistance.
- The clear material is lightweight and offers greater impact resistance than glass, making it useful where transparency is required.
- Hand-adjustable knurled head with an additional slotted recess for screwdriver tightening. Also known as knurled screws, finger screws.
Product Summary
Clear acrylic / PC slotted knurled thumbscrews, nuts and washers provide transparent non-metal fastening. Easy installation and removal allow for straightforward adjustments where frequent changes are needed. The knurled head provides extra grip for hand-tightening, while the slotted recess allows screwdriver adjustment. Acrylic and polycarbonate are similar thermoplastics often used interchangeably; acrylic provides good strength and UV resistance, while polycarbonate offers higher impact and heat resistance. These clear fasteners are lightweight and moisture-resistant, with greater impact resistance than glass. Thumbscrews are also known as knurled screws or hand-tightening screws.
