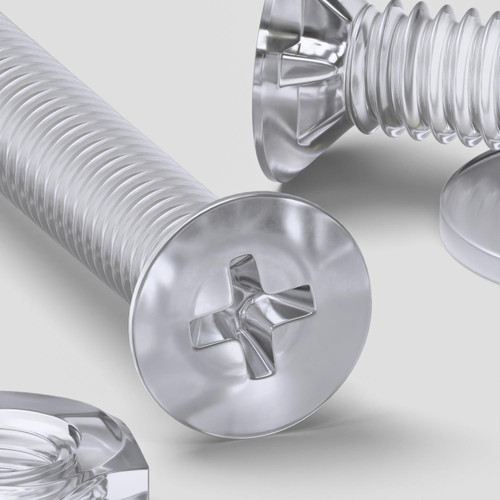

50x Clear Acrylic Countersunk Screws & Bolts M2 x 20 mm, Nuts & Washers

(No reviews yet) Write a Review

SKU: 167

Sale $22.13
$19.91

Price excludes VAT

Adding to basket... The item has been added

Features:

  • 50x Bolts, 50x Nuts, 50x Washers. Colour: Clear. Material: Acrylic / PC. Type: Countersunk Cross Head Bolts. Length: 20mm. Diameter: 2mm. Pitch: 0.4mm. Head diameter: 3.6mm. Head height: 1.2mm. SKU: 167.
  • Transparent acrylic / PC material provides optical clarity for clear plastic fixings.
  • Polycarbonate has moderate chemical resistance to mild acids, alcohols and oils; acrylic has poor resistance to most organic solvents.
  • Acrylic is a strong, tough, and durable material with good impact strength, being 50% lighter than glass.
  • The countersunk cross head sits flush with the surface when fitted in a countersunk hole. Also known as cross-recess countersunk screws, flat head screws.

Product Summary:

These clear acrylic / PC countersunk cross head bolts can be used for sign mounting and fixing. Acrylic and polycarbonate (PC) are similar thermoplastics often used interchangeably; acrylic gives good strength and UV resistance, while polycarbonate gives higher impact and heat resistance. The material is strong, durable and lightweight, with optical clarity for transparent fixings. The countersunk head sits flush with the surface when fitted in a countersunk hole. These fasteners are also known as plastic bolts or plastic screws.

Core Technical Details
Product Type Countersunk Cross Head Bolts
Size (mm) M2 x 20mm
Material Acrylic / Polycarbonate
Colour Clear
Quantity 50
Dimensions - mm
Diameter -mm 2.00
Length - mm 20 mm (L)
Width -mm 2 mm (W)
Thickness / Depth -mm 2 mm (D)
Pitch - mm 0.4
Dimensions - Inches Conversion
Length -inches 0.787
Width -inches 0.079
Thickness / Depth -inches 0.079
Pitch - inches 0.0157
Product Download Sheets
Material Data Sheet Polycarbonate (PC) — Material Datasheet
Product Data Sheet Polycarbonate (PC) — Screws & Bolts Datasheet
Safety Data Sheet Conformity Safety
Type

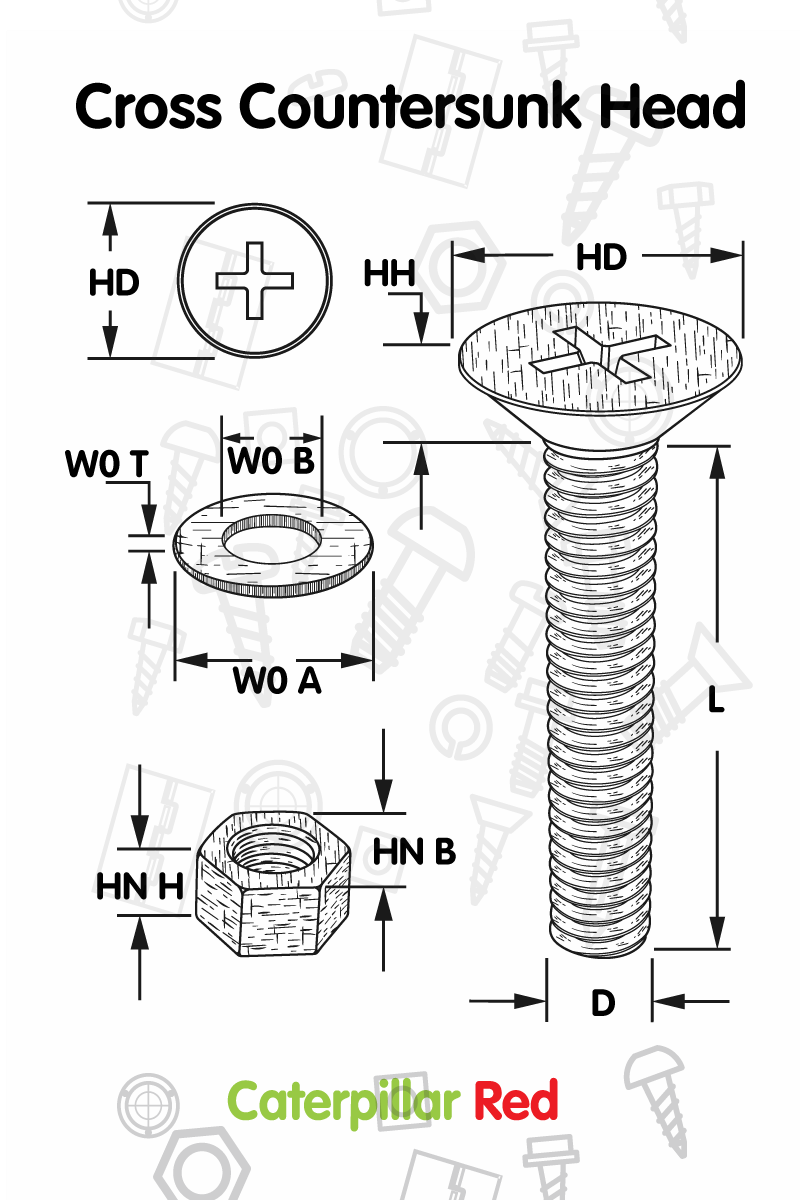

Technical Drawing https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Countersunk-Head.png
Bolt Dimensions Head/Drive Type: Cross Countersunk Head Bolt, size: M2 x 20, D: 2 mm, Pitch: 0.4 mm, L: 20 mm, HD: 3.65 mm, HH: 1.2 mm
Nut Dimensions Material: Polycarbonate, Head/Drive Type: Hexagon Nut, size: M2, N (mm): M2, HN B: 3.91 mm, HN H: 1.48 mm
Washer Dimensions Material: Polycarbonate, Head/Drive Type: Flat washer, size: M2, W0 A: 4.85 mm, W0 B: 2.27 mm, W0 T: 0.3 mm
Width -mm 2 mm (W)
Length - mm 20 mm (L)
Thickness / Depth -mm 2 mm (D)
Diameter -mm 2.00
