Features:

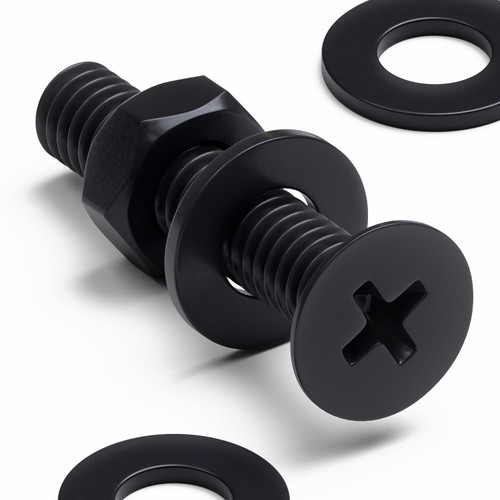

- 50x Bolts, 50x Nuts, 50x Washers. Pantone 3C Black. Material: PA 66 / Nylon. Type: Countersunk Cross Head Bolts. Length: 20 mm. Diameter: 4 mm. Pitch: 0.7 mm. SKU: 599.
- Nylon is exceptionally strong and exhibits high tensile strength, as well as high wear and impact resistance.
- Made from tough, lightweight nylon, these fasteners offer excellent electrical insulating and non-corrosive properties.
- An alternative is available in 50% glass-filled, further extending its mechanical properties.
- Equipped with a crosshead for fastening with a crosshead screwdriver. Tapered, flat-topped head sits flush with the surface to ensure a smooth surface finish.
Product Summary:
| Core Technical Details | |
|---|---|
| Product Type | Countersunk Cross Head Bolts |
| Size (mm) | M4 x 20mm |
| Material | Nylon / Polyamide 66 |
| Colour | Black |
| Quantity | 50 |
| Dimensions - mm | |
| Diameter -mm | 4.00 |
| Length - mm | 20 mm (L) |
| Width -mm | 4 mm (W) |
| Thickness / Depth -mm | 4 mm (D) |
| Pitch - mm | 0.7 |
| Dimensions - Inches Conversion | |
| Length -inches | 0.787 |
| Width -inches | 0.157 |
| Thickness / Depth -inches | 0.157 |
| Pitch - inches | 0.0276 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Nylon PA66 — Material Datasheet |
| Product Data Sheet | Nylon PA66 — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Countersunk-Head.png |
| Bolt Dimensions | Head/Drive Type: Cross Countersunk Head Bolt, size: M4 x 20, D: 4 mm, Pitch: 0.7 mm, L: 20 mm, HD: 8.22 mm, HH: 2.7 mm |
| Nut Dimensions | Material: Polyamide66, Head/Drive Type: Hexagon Nut, size: M4, N (mm): M4, HN B: 6.89 mm, HN H: 3.05 mm |
| Washer Dimensions | Material: Polyamide66, Head/Drive Type: Flat washer, size: M4, W0 A: 8.82 mm, W0 B: 4.39 mm, W0 T: 0.8 mm |
| Width -mm | 4 mm (W) |
| Length - mm | 20 mm (L) |
| Thickness / Depth -mm | 4 mm (D) |
| Diameter -mm | 4.00 |
