Features:

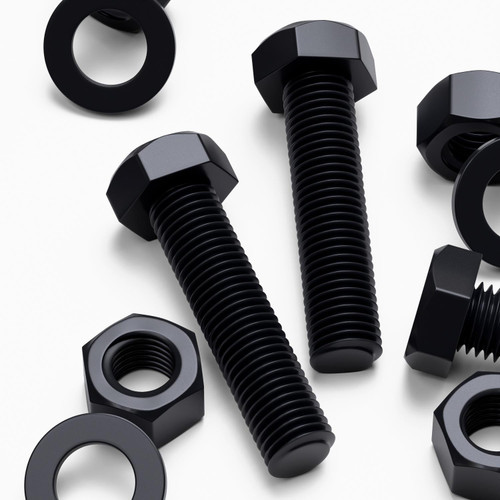

- 3x Bolts, 3x Nuts, 3x Washers. Material: PA 66 / Nylon. Type: Hex Head Bolts. Length: 100mm. Diameter: 24mm. Pitch: 3mm. SKU: 909.
- Made from tough, lightweight nylon, these fasteners offer excellent electrical insulating and non-corrosive properties
- Nylon is exceptionally strong and exhibits high tensile strength, as well as high wear and impact resistance.
- Nylon is resistant to most organic solvents, fuels, oils, weak acids and bases.
- Manual or machine fitting with a wrench or socket for high-torque, highly secure application.
Product Summary:
Nylon has a very low coefficient of friction, making it popular for applications where wear resistance is required, such as fasteners and cable ties. It is one of the most widely used plastics in the world, with all grades retaining high strength and offering exceptional wear resistance. It has corrosion, chemical and electrical resistance. Tough and lightweight, Nylon Hex Bolt fasteners offer excellent electrical insulation properties and are non-corrosive and non-magnetic.
| Core Technical Details | |
|---|---|
| Product Type | Hex Head Bolts |
| Size (mm) | M24 x 100mm |
| Material | Nylon / Polyamide 66 |
| Colour | Black |
| Quantity | 3 |
| Dimensions - mm | |
| Diameter -mm | 24.00 |
| Length - mm | 100 mm (L) |
| Width -mm | 24 mm (W) |
| Thickness / Depth -mm | 24 mm (D) |
| Pitch - mm | 3 |
| Dimensions - Inches Conversion | |
| Length -inches | 3.937 |
| Width -inches | 0.945 |
| Thickness / Depth -inches | 0.945 |
| Pitch - inches | 0.1181 |
| Product Download Sheets | |
| Material Data Sheet | Nylon PA66 — Material Datasheet |
| Product Data Sheet | Nylon PA66 — Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png |
| Bolt Dimensions | Head/Drive Type: Hexagon Head Bolt, size: M24 x 100, D: 24 mm, Pitch: 3 mm, L: 100 mm, HD: 35.5 mm, HH: 15 mm |
| Nut Dimensions | Material: Polyamide66, Head/Drive Type: Hexagon Nut, size: M24, N (mm): M24, HN B: 35.5 mm, HN H: 20.85 mm |
| Washer Dimensions | Material: Polyamide66, Head/Drive Type: Flat washer, size: M24, W0 A: 43.69 mm, W0 B: 25.17 mm, W0 T: 4 mm |
| Width -mm | 24 mm (W) |
| Length - mm | 100 mm (L) |
| Thickness / Depth -mm | 24 mm (D) |
| Diameter -mm | 24.00 |
