Features:
- Pack of 2 threaded rods. 4 nuts included. Material: PA66+GF 30% glass-fibre reinforced nylon. Size: M8 x 1000 mm. Diameter: 8 mm. Pitch: 1.25 mm. SKU: 1014.
- Made from 30% glass-fibre-reinforced nylon (PA66+GF), providing greater stiffness and dimensional stability than unfilled PA66.
- Natural PA66+GF is suitable for dry workshop, display, jig and equipment-layout use; allow for nylon’s moisture sensitivity in damp conditions.
- Fully threaded along the full 1000 mm length; cut to your required size and pair with compatible M8 nuts or threaded parts.
- Useful for spacers, setting blocks, panel offsets and longer jig runs; confirm thread engagement, tightening force and material suitability before use.
Product Summary:

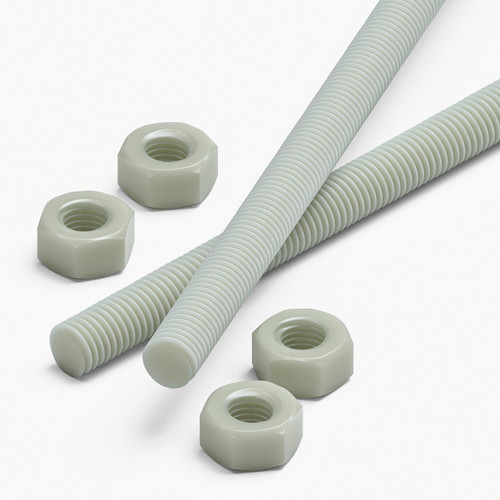

These natural M8 x 1000 mm threaded rods are supplied as a pack of two and are made from 30% glass-fibre-reinforced nylon (PA66+GF). The glass-fibre reinforced nylon grade is a stiffer alternative to unfilled PA66, with better dimensional stability and creep resistance while remaining a non-metallic, cut-to-length rod. Use them for spacers, setting blocks, panel offsets and longer jig runs. Saw to length with suitable tools, deburr the cut ends, and check the finished assembly where plastic threads will be stressed or tightened repeatedly. SKU: 1014. Supplied with 4 nuts.
| Core Technical Details | |
|---|---|
| Product Type | Threaded Rods |
| Size (mm) | M8 x 1000mm |
| Material | Nylon PA 66 / 30% Glass Fibre Reinforced |
| Colour | Natural |
| Quantity | 2 |
| Dimensions - mm | |
| Diameter -mm | 8.00 |
| Length - mm | 1000 mm (L) |
| Width -mm | 8 mm (W) |
| Thickness / Depth -mm | 8 mm (D) |
| Pitch - mm | 1.25 |
| Dimensions - Inches Conversion | |
| Length -inches | 39.37 |
| Width -inches | 0.315 |
| Thickness / Depth -inches | 0.315 |
| Pitch - inches | 0.049 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Nylon PA66 30% Glass Fibre — Material Datasheet |
| Product Data Sheet | Nylon PA66 30% Glass Fibre — Threaded Rods Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Threaded-Rod-Stud.jpg |
| Bolt Dimensions | Stock Code: CR-Rod-07063-PA66GF Material: Nylon PA66 + 30% Glass Fibre Reinforced Material Reference: PA66+GF Head/Drive Type: Fully Threaded Rod size: M8 x 1000 D: 8 mm Pitch: 1.25 mm L: 1000 mm |
| Width -mm | 8 mm (W) |
| Length - mm | 1000 mm (L) |
| Thickness / Depth -mm | 8 mm (D) |
| Diameter -mm | 8.00 |
