Stock code 1015

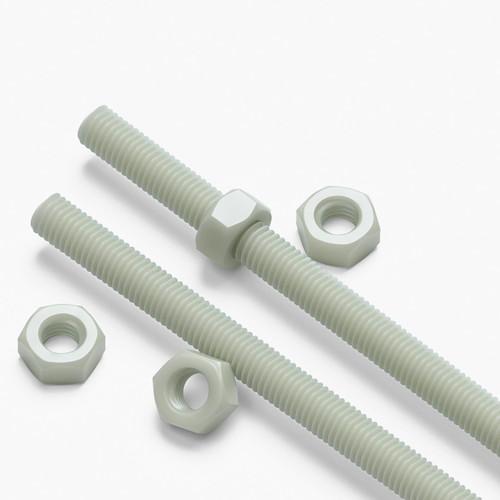

2x Natural Nylon PA66+GF M10 x 1000 mm Threaded Rods, Studding + 4 Nuts
A closer look.
The details, at a glance.
- Thread M10
- Length 1000 mm
- Material Nylon PA 66 / 30% Glass Fibre Reinforced
- Colour Natural
- Pack size 2
In stock
Dimensions & documents
Check the fit. Technical specification
- Product type
- Threaded Rods
- Size (mm)
- M10 x 1000mm
- Thread
- M10
- Material
- Nylon PA 66 / 30% Glass Fibre Reinforced
- Colour
- Natural
- Pack size
- 2
- Diameter
- 10.00 mm
- Length
- 1000 mm
- Width
- 10 mm
- Thickness / depth
- 10 mm
- Pitch
- 1.5 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Bolt, nut and washer dimensions
Bolt
Material: Nylon PA66 + 30% Glass Fibre Reinforced, Head/Drive Type: Fully Threaded Rod, size: M10 x 1000, D: 10 mm, Pitch: 1.5 mm, L: 1000 mm
Description
Features
- Pack of 2 threaded rods. Colour: Natural. Material: Nylon PA 66 / 30% Glass Fibre Reinforced. Length: 1000mm. Diameter: 10mm. Pitch: 1.5mm. 4 nuts included (2 per rod). SKU: 1015.
- Made from 30% glass-fibre-reinforced nylon (PA66+GF), providing greater stiffness and dimensional stability than unfilled PA66.
- The glass-filled grade is harder and less flexible than unfilled nylon, so avoid sharp bending and check thread fit before final assembly.
- Fully threaded along the full 1000 mm length; cut to your required size and pair with compatible M10 nuts or threaded parts.
- Useful for long fixture layouts, threaded spacers, alignment bars and removable assemblies; confirm thread engagement, tightening force and material suitability before use. Also known as studding, allthread, threaded bar.
Product Summary
These natural M10 x 1000 mm threaded rods are supplied as a pack of two and are made from 30% glass-fibre-reinforced nylon (PA66+GF). The glass-fibre reinforced nylon grade is a stiffer alternative to unfilled PA66, with better dimensional stability while remaining a non-metallic, cut-to-length rod. Use them for long fixture layouts, threaded spacers, alignment bars and removable assemblies. Saw to length with suitable tools, deburr the cut ends, and check the finished assembly where plastic threads will be stressed or tightened repeatedly. Supplied with 4 nuts.
