Stock code 982

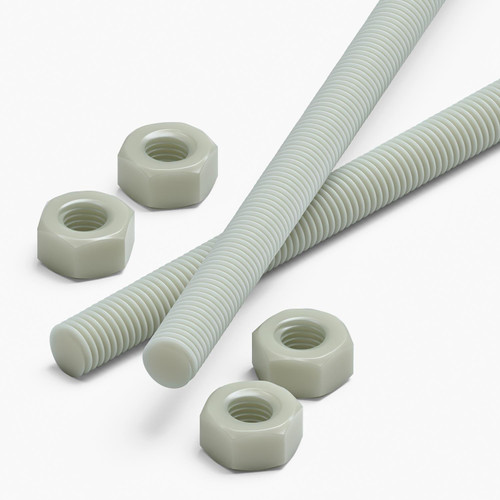

2x Natural Nylon PA66+GF M8 x 500 mm Threaded Rods, Studding + 4 Nuts
A closer look.
The details, at a glance.
- Thread M8
- Length 500 mm
- Material Nylon PA 66 / 30% Glass Fibre Reinforced
- Colour Natural
- Pack size 2
In stock
Dimensions & documents
Check the fit. Technical specification
- Product type
- Threaded Rods
- Size (mm)
- M8 x 500mm
- Thread
- M8
- Material
- Nylon PA 66 / 30% Glass Fibre Reinforced
- Colour
- Natural
- Pack size
- 2
- Diameter
- 8.00 mm
- Length
- 500 mm
- Width
- 8 mm
- Thickness / depth
- 8 mm
- Pitch
- 1.25 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Bolt, nut and washer dimensions
Bolt
Material: Nylon PA66 + 30% Glass Fibre Reinforced, Head/Drive Type: Fully Threaded Rod, size: M8 x 500, D: 8 mm, Pitch: 1.25 mm, L: 500 mm
Description
Features
- Pack of 2 threaded rods. Colour: Natural. Material: Nylon PA 66 / 30% Glass Fibre Reinforced. Length: 500mm. Diameter: 8mm. Pitch: 1.25mm. 4 nuts included (2 per rod). SKU: 982.
- Made from 30% glass-fibre-reinforced nylon (PA66+GF), providing greater stiffness and dimensional stability than unfilled PA66.
- Non-metallic nylon body with useful wear resistance for light-duty plastic-threaded assemblies.
- Fully threaded from end to end, so compatible M8 nuts can be positioned along the available 500 mm length.
- Use for medium-length reinforced spacers, alignment rods and cut-to-length threaded sections; cut carefully and check thread engagement before final use. Also known as studding, allthread, threaded bar.
Product Summary
These natural M8 x 500 mm threaded rods are supplied as a pack of two and are made from 30% glass-fibre-reinforced nylon (PA66+GF). Each rod has an 8 mm nominal diameter, 500 mm length and 1.25 mm pitch. The glass reinforcement gives a stiffer and more dimensionally stable plastic threaded bar than unfilled PA66, while still keeping the part non-metallic and easy to cut with suitable tools. This size is useful for medium-length reinforced spacers, alignment rods and cut-to-length threaded sections, especially where a metal rod is unnecessary or undesirable. PA66+GF is harder and less flexible than plain nylon, so allow for careful cutting, clean thread engagement and suitability checks before final fitting. Use with compatible M8 nuts for light-duty spacing, alignment, mounting and general plastic-threaded assembly work. Supplied with 4 nuts.
