Stock code 987

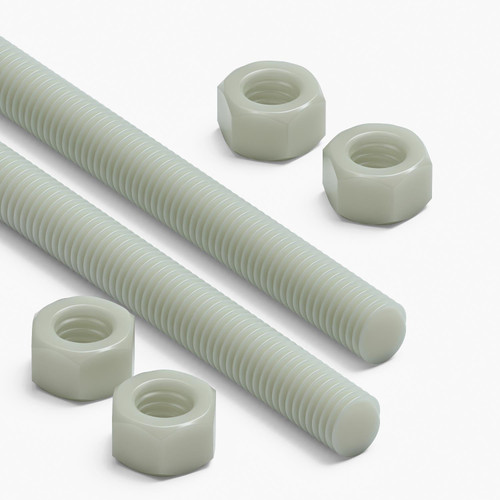

2x Natural Nylon PA66+GF M12 x 200 mm Threaded Rods, Studding + 4 Nuts
A closer look.
The details, at a glance.
- Thread M12
- Length 200 mm
- Material Nylon PA 66 / 30% Glass Fibre Reinforced
- Colour Natural
- Pack size 2
In stock
Dimensions & documents
Check the fit. Technical specification
- Product type
- Threaded Rods
- Size (mm)
- M12 x 200mm
- Thread
- M12
- Material
- Nylon PA 66 / 30% Glass Fibre Reinforced
- Colour
- Natural
- Pack size
- 2
- Diameter
- 12.00 mm
- Length
- 200 mm
- Width
- 12 mm
- Thickness / depth
- 12 mm
- Pitch
- 1.75 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Bolt, nut and washer dimensions
Bolt
Material: Nylon PA66 + 30% Glass Fibre Reinforced, Head/Drive Type: Fully Threaded Rod, size: M12 x 200, D: 12 mm, Pitch: 1.75 mm, L: 200 mm
Description
Features
- Pack of 2 threaded rods. Colour: Natural. Material: Nylon PA 66 / 30% Glass Fibre Reinforced. Length: 200mm. Diameter: 12mm. Pitch: 1.75mm. 4 nuts included (2 per rod). SKU: 987.
- Made from 30% glass-fibre-reinforced nylon (PA66+GF), providing greater stiffness and dimensional stability than unfilled PA66.
- Reinforced nylon is less flexible than unfilled PA66, so avoid repeated bending and check tightening method.
- The fully threaded 200 mm length can be used as supplied or cut carefully into custom reinforced plastic sections.
- Use for light-duty spacing, alignment and positioning where a reinforced plastic M12 threaded rod is useful. Also known as studding, allthread, threaded bar.
Product Summary
These natural M12 x 200 mm threaded rods are supplied as a pack of two and are made from 30% glass-fibre-reinforced nylon (PA66+GF). Glass-fibre reinforcement makes PA66 stiffer than unfilled PA66 and helps dimensions stay more stable in light spacing, alignment and cut-to-length threaded sections. This size suits short reinforced stand-offs, panel spacing and compact alignment points, especially where a non-metallic threaded bar needs more rigidity than plain nylon. The full-thread form accepts compatible M12 nuts along the rod and can be cut carefully if a shorter reinforced plastic section is needed. Reinforced nylon is less flexible than unfilled nylon, so check thread engagement, tightening method and assembly suitability before use. Supplied with 4 nuts.
