Features:

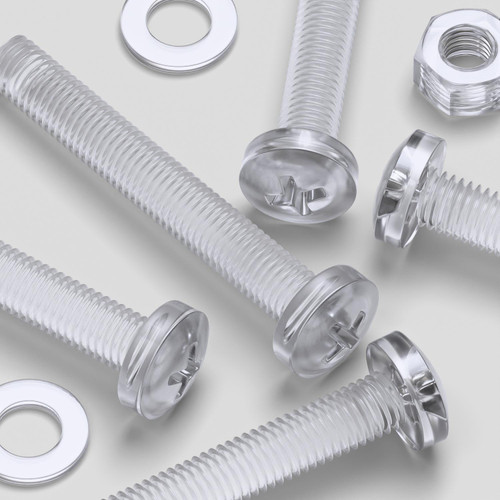

- 20x Bolts, 20x Nuts, 20x Washers. Material: Acrylic / PC. Type: Pan Cross Head Bolts. Length: 60mm. Diameter: 8mm. Pitch: 1.25mm. Head diameter: 15.8mm. Head height: 5.8mm. SKU: 605.
- Acrylic is a strong, tough, and durable material with good impact strength.
- Clear acrylic / PC provides a transparent appearance for plastic fixings.
- Moderate chemical resistance to mild acids, alcohols, and oils. Low moisture absorption, excellent electrical insulation properties.
- Can be easily tightened and removed with a crosshead screwdriver. Also known as cross-recess pan screws, pan head machine screws.
Product Summary:
Acrylic and polycarbonate are similar thermoplastics often used interchangeably. Acrylic offers good strength and UV resistance, while polycarbonate offers higher impact and heat resistance. These clear plastics provide a transparent appearance and are lightweight, non-corrosive and electrically insulating. These are also known as plastic bolts and plastic screws.
| Core Technical Details | |
|---|---|
| Product Type | Pan Cross Head Bolts |
| Size (mm) | M8 x 60mm |
| Material | Acrylic / Polycarbonate |
| Colour | Clear |
| Quantity | 20 |
| Dimensions - mm | |
| Diameter -mm | 8.00 |
| Length - mm | 60 mm (L) |
| Width -mm | 8 mm (W) |
| Thickness / Depth -mm | 8 mm (D) |
| Pitch - mm | 1.25 |
| Dimensions - Inches Conversion | |
| Length -inches | 2.362 |
| Width -inches | 0.315 |
| Thickness / Depth -inches | 0.315 |
| Pitch - inches | 0.0492 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Polycarbonate (PC) — Material Datasheet |
| Product Data Sheet | Polycarbonate (PC) — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png |
| Bolt Dimensions | Head/Drive Type: Cross Pan Head Bolt, size: M8 x 60, D: 8 mm, Pitch: 1.25 mm, L: 60 mm, HD: 15.79 mm, HH: 5.85 mm |
| Nut Dimensions | Material: Polycarbonate, Head/Drive Type: Hexagon Nut, size: M8, N (mm): M8, HN B: 12.87 mm, HN H: 6.62 mm |
| Washer Dimensions | Material: Polycarbonate, Head/Drive Type: Flat washer, size: M8, W0 A: 15.78 mm, W0 B: 8.51 mm, W0 T: 1.6 mm |
| Width -mm | 8 mm (W) |
| Length - mm | 60 mm (L) |
| Thickness / Depth -mm | 8 mm (D) |
| Diameter -mm | 8.00 |
