Features:

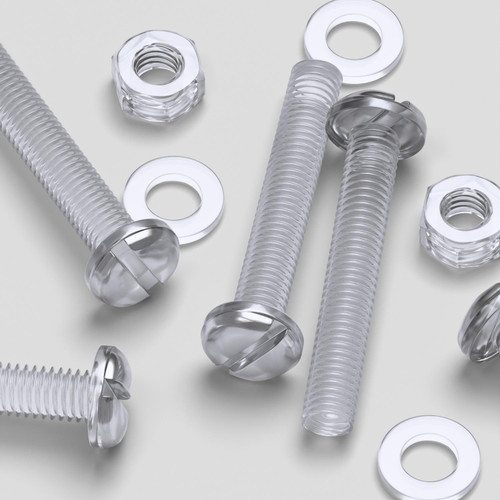

- 20x Bolts, 20x Nuts, 20x Washers. Material: Acrylic / PC. Type: Pan Slotted Bolts. Length: 40mm. Diameter: 6mm. Pitch: 1mm. SKU: 768.
- Acrylic is a strong, tough, and durable material with good impact strength.
- It has low moisture absorption, excellent electrical insulation properties
- Exhibiting high transparency of up to 92% and reflectance of roughly 4%, acrylic is a good alternative to glass.
- Universal slotted drive allows simple and efficient fastening.
Product Summary:
Clear Plastic Acrylic PC Bolts, Nuts, Washers and Screws exhibits a light transmittance of up to 92%, making it a popular alternative to glass in applications requiring optical clarity. The material is moisture-resistant, strong, durable, and lightweight, with an impact resistance at least 100 times greater than glass. The structure includes aromatic rings linked by carbonate groups, contributing to its strength and rigidity. Additionally, it offers good resistance to shocks, and PC screws resist breaking in high-impact applications. Bolts & Screws also known as plastic bolts, plastic screws, plastic bolt, plastic screw
| Core Technical Details | |
|---|---|
| Product Type | Pan Slotted Bolts |
| Size (mm) | M6 x 40mm |
| Material | Acrylic / Polycarbonate |
| Colour | Clear |
| Quantity | 20 |
| Dimensions - mm | |
| Diameter -mm | 6.00 |
| Length - mm | 40 mm (L) |
| Width -mm | 6 mm (W) |
| Thickness / Depth -mm | 6 mm (D) |
| Pitch - mm | 1 |
| Dimensions - Inches Conversion | |
| Length -inches | 1.575 |
| Width -inches | 0.236 |
| Thickness / Depth -inches | 0.236 |
| Pitch - inches | 0.0394 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Polycarbonate (PC) — Material Datasheet |
| Product Data Sheet | Polycarbonate (PC) — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Slotted-Pan-Head.png |
| Bolt Dimensions | Head/Drive Type: Slotted Pan Head Head bolt, size: M6 x 40, D: 6 mm, Pitch: 1 mm, L: 40 mm, HD: 11.79 mm, HH: 3.45 mm, HS: 1.79 mm |
| Nut Dimensions | Material: Polycarbonate, Head/Drive Type: Hexagon Nut, size: M6, N (mm): M6, HN B: 9.89 mm, HN H: 5.05 mm |
| Washer Dimensions | Material: Polycarbonate, Head/Drive Type: Flat washer, size: M6, W0 A: 11.78 mm, W0 B: 6.51 mm, W0 T: 1.6 mm |
| Width -mm | 6 mm (W) |
| Length - mm | 40 mm (L) |
| Thickness / Depth -mm | 6 mm (D) |
| Diameter -mm | 6.00 |
