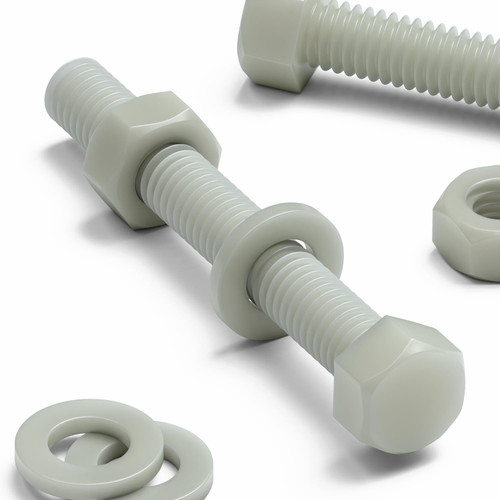

20x Glass Filled, Reinforced Super Nylon, Hex Head, M6 x 70mm, Plastic Bolts, Nuts & Washers

(No reviews yet) Write a Review

SKU: 706

Sale £18.32
£16.49

Price excludes VAT

Adding to basket... The item has been added

Features:

  • 20x Bolts, 20x Nuts, 20x Washers. Material: PA 66 / 50% GF. Type: Hex Head Bolts. Length: 70mm. Diameter: 6mm. Pitch: 1mm. SKU: 706.
  • Our 50% GF demonstrates superior tensile and flexural strength, as well as impact resistance, enabling its use in load-bearing applications.
  • PA66+GF demonstrates excellent chemical resistance to oils, fuels, and most solvents.
  • PA66+GF is manufactured by compounding glass fibers with polyamide 66, typically in concentrations ranging from 15% to 60% by weight.
  • Hexagonal head designed for fastening and removal with a wrench or socket. Robust torque transfer for the most demanding fastening applications.

Product Summary:

While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF is superior to that of PA66, meaning that the composite can withstand higher temperatures before beginning to deform under load. The composite exhibits reduced moisture absorption, a significant improvement over PA66's susceptibility to moisture. Common applications include automotive components, industrial machinery and consumer goods where high strength and thermal resistance are required. Hex Bolts & Screws also known as plastic bolts, plastic screws, plastic bolt, plastic screw.

Colour:
Natural
Diameter -mm:
6.00
Length - mm:
70 mm (L)
Length -inches:
2.756
Material:
Nylon PA 66 / 50% Glass Fibre Reinforced
Material Data Sheet:
Nylon GF50 Datasheet
Pitch - inches:
0.039
Pitch - mm:
1
Product Data Sheet:
Nylon PA66 50% GF Screws & Bolts Datasheet
Product Type:
Hex Head Bolts
Quantity:
20
Safety Data Sheet:
Conformity Safety
Size (mm):
M6 x 70mm
Thickness / Depth -inches:
0.236
Thickness / Depth -mm:
6 mm (D)
Width -inches:
0.236
Width -mm:
6 mm (W)
Bolt Dimensions:
Stock Code: CR01277PA66+GF
Head/Drive Type: Hexagon Head Bolt
size: M6 x 70
D: 6 mm
Pitch: 1.0 mm
L: 70 mm
HD: 9.82 mm
HH: 4.0 mm
Nut Dimensions:
Stock Code: CR06372PA+GF
Material: Polyamide+fiberglass
Material Reference: PA+GF/HN
Head/Drive Type: Hexagon Nut
size: M8
N (mm): M8
HN B: 12.87 mm
HN H: 6.62 mm
Washer Dimensions:
Stock Code: CR06527PA+GF
Material: Polyamide+fiberglass
Material Reference: PA+GF/W0
Head/Drive Type: Flat Washer
size: M6
W0 A: 11.78 mm
W0 B: 6.51 mm
W0 T: 1.6 mm
