Features:

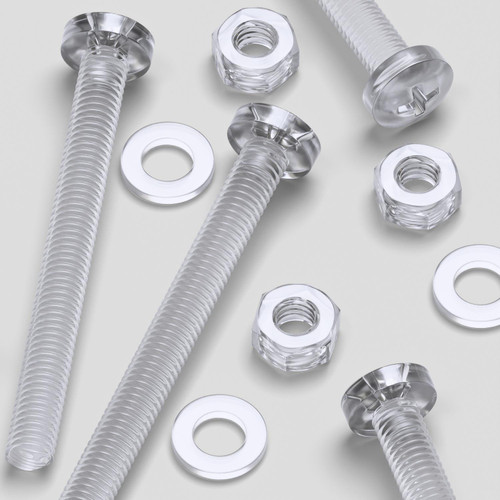

- 60x Bolts, 60x Nuts, 60x Washers. Material: Acrylic / PC. Type: Pan Cross Head Bolts. Length: 60mm. Diameter: 6mm. Pitch: 1mm. SKU: 629.
- Acrylic is a strong, tough, and durable material with good impact strength.
- Exhibiting high transparency of up to 92% and reflectance of roughly 4%, acrylic is a good alternative to glass.
- Moderate chemical resistance to mild acids, alcohols, and oils. Low moisture absorption, excellent electrical insulation properties
- Can be easily tightened and removed with a crosshead screwdriver.
Product Summary:
Clear Acrylic PC Bolts, Nuts, Washers and Screws has a light transmission of up to 92%, making it a popular alternative to glass in applications where optical clarity is required. The material is moisture resistant, strong, durable and lightweight, with impact resistance at least 100 times greater than glass. The structure includes aromatic rings linked by carbonate groups, contributing to its strength and rigidity. It also offers good shock resistance and PC screws resist breakage in high-impact applications. Bolts & Screws also known as plastic bolts, plastic screws, plastic bolts, plastic screw
| Core Technical Details | |
|---|---|
| Product Type | Pan Cross Head Bolts |
| Size (mm) | M6 x 60mm |
| Material | Acrylic / Polycarbonate |
| Colour | Clear |
| Quantity | 60 |
| Dimensions - mm | |
| Diameter -mm | 6.00 |
| Length - mm | 60 mm (L) |
| Width -mm | 6 mm (W) |
| Thickness / Depth -mm | 6 mm (D) |
| Pitch - mm | 1 |
| Dimensions - Inches Conversion | |
| Length -inches | 2.362 |
| Width -inches | 0.236 |
| Thickness / Depth -inches | 0.236 |
| Pitch - inches | 0.0394 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Polycarbonate (PC) — Material Datasheet |
| Product Data Sheet | Polycarbonate (PC) — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png |
| Bolt Dimensions | Head/Drive Type: Cross Pan Head Bolt, size: M6 x 60, D: 6 mm, Pitch: 1.0 mm, L: 60 mm, HD: 11.79 mm, HH: 4.45 mm |
| Nut Dimensions | Material: Polycarbonate, Head/Drive Type: Hexagon Nut, size: M6, N (mm): M6, HN B: 9.89 mm, HN H: 5.05 mm |
| Washer Dimensions | Material: Polycarbonate, Head/Drive Type: Flat washer, size: M6, W0 A: 11.78 mm, W0 B: 6.51 mm, W0 T: 1.6 mm |
| Width -mm | 6 mm (W) |
| Length - mm | 60 mm (L) |
| Thickness / Depth -mm | 6 mm (D) |
| Diameter -mm | 6.00 |
