Features:

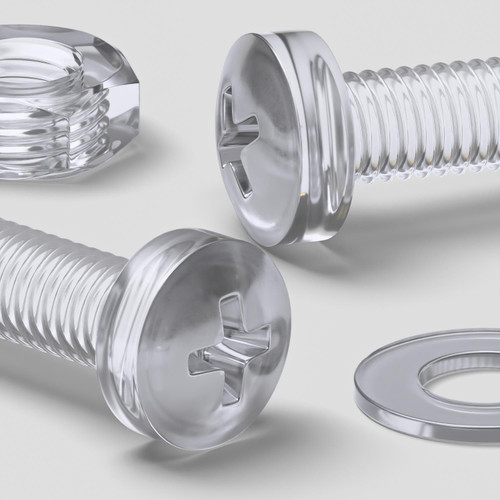

- 60x Bolts, 60x Nuts, 60x Washers. Material: Acrylic / PC. Type: Pan Cross Head Bolts. Length: 25mm. Diameter: 3mm. Pitch: 0.5mm. SKU: 402.
- Exhibiting high transparency of up to 92% and reflectance of roughly 4%, acrylic is a good alternative to glass.
- Bolts have moderate chemical resistance to mild acids, alcohols, and oils.
- Moderate chemical resistance to mild acids, alcohols, and oils. Low moisture absorption, excellent electrical insulation properties
- Can be easily tightened and removed with a crosshead screwdriver.
Product Summary:
Clear Acrylic / PC bolts, nuts, washers and screws exhibit light transmittance of up to 92%, making them a popular alternative to glass in applications requiring optical clarity. The material is moisture-resistant, strong, durable and lightweight, with impact resistance at least 100 times greater than glass. Its structure includes aromatic rings linked by carbonate groups, contributing to strength and rigidity. PC screws offer good shock resistance and resist breaking in high-impact applications. Bolts and screws are also known as plastic bolts, plastic screws, plastic fasteners and machine screws.
| Core Technical Details | |
|---|---|
| Product Type | Pan Cross Head Bolts |
| Size (mm) | M3 x 25mm |
| Material | Acrylic / Polycarbonate |
| Colour | Clear |
| Quantity | 60 |
| Dimensions - mm | |
| Diameter -mm | 3.00 |
| Length - mm | 25 mm (L) |
| Width -mm | 3 mm (W) |
| Thickness / Depth -mm | 3 mm (D) |
| Pitch - mm | 0.5 |
| Dimensions - Inches Conversion | |
| Length -inches | 0.984 |
| Width -inches | 0.118 |
| Thickness / Depth -inches | 0.118 |
| Pitch - inches | 0.02 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Polycarbonate (PC) — Material Datasheet |
| Product Data Sheet | Polycarbonate (PC) — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png |
| Bolt Dimensions | Stock Code: CR03423PC Head/Drive Type: Cross Pan Head Bolt size: M3 x 25 D: 3 mm Pitch: 0.5 mm L: 25 mm HD: 5.45 mm HH: 2.33 mm |
| Nut Dimensions | Stock Code: CR06481PC Material: Polycarbonate Material Reference: PC/HN Head/Drive Type: Hexagon Nut size: M3 N (mm): M3 HN B: 5.41 mm HN H: 2.28 mm |
| Washer Dimensions | Stock Code: CR06590PC Material: Polycarbonate Material Reference: PC/W0 Head/Drive Type: Flat washer size: M3 W0 A: 6.82 mm W0 B: 3.29 mm W0 T: 0.5 mm |
| Width -mm | 3 mm (W) |
| Length - mm | 25 mm (L) |
| Thickness / Depth -mm | 3 mm (D) |
| Diameter -mm | 3.00 |
