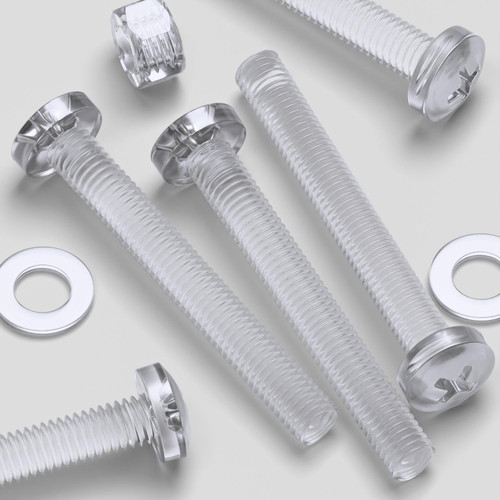

60x Clear Acrylic Pan Head Plastic Screws & Bolts M5 x 40 mm, Nuts & Washers

60x Clear Acrylic Pan Head Plastic Screws & Bolts M5 x 40 mm, Nuts & Washers

The details, at a glance.

  • Thread M5
  • Length 40 mm
  • Material Acrylic / Polycarbonate
  • Colour Clear
  • Pack size 60
Prices
Price per pack £17.99 ex VAT · £21.59 inc VAT
Current Stock:

    Adding to basket… Added to your basket.
    Request a quote

    In stock

    Need another length?

    10 mm20 mm30 mm40 mm

    Dimensions & documents

    Conformity Safety Polycarbonate (PC) — Material Datasheet Polycarbonate (PC) — Screws & Bolts Datasheet Technical drawing

    Check the fit. Technical specification

    Product type
    Pan Cross Head Bolts
    Size (mm)
    M5 x 40mm
    Thread
    M5
    Material
    Acrylic / Polycarbonate
    Colour
    Clear
    Pack size
    60
    Diameter
    5.00 mm
    Length
    40 mm
    Width
    5 mm
    Thickness / depth
    5 mm
    Pitch
    0.8 mm

    Bolt, nut and washer dimensions

    Bolt

    Head/Drive Type: Cross Pan Head Bolt, size: M5 x 40, D: 5 mm, Pitch: 0.8 mm, L: 40 mm, HD: 9.32 mm, HH: 3.61 mm

    Nut

    Material: Polycarbonate, Head/Drive Type: Hexagon Nut, size: M5, N (mm): M5, HN B: 7.89 mm, HN H: 4.55 mm

    Washer

    Material: Polycarbonate, Head/Drive Type: Flat washer, size: M5, W0 A: 9.82 mm, W0 B: 5.39 mm, W0 T: 1.0 mm

    Description

    Features

    • 60x Bolts, 60x Nuts, 60x Washers. Material: Acrylic / PC. Type: Pan Cross Head Bolts. Length: 40mm. Diameter: 5mm. Pitch: 0.8mm. Head diameter: 9.3mm. Head height: 3.6mm. SKU: 145.
    • Acrylic is a strong, tough, and durable material with good impact strength, being 50% lighter than glass.
    • Clear acrylic / PC provides a transparent appearance for plastic fixings.
    • Moderate chemical resistance to mild acids, alcohols, and oils. Low moisture absorption, excellent electrical insulation properties.
    • Secure and robust tightening achieved with a crosshead screwdriver. Also known as cross-recess pan screws, pan head machine screws.

    Product Summary

    Acrylic and polycarbonate are similar thermoplastics often used interchangeably. Acrylic offers good strength and UV resistance, while polycarbonate offers higher impact and heat resistance. These clear plastics provide a transparent appearance and are lightweight, non-corrosive and electrically insulating. These are also known as plastic bolts and plastic screws.
