Features:

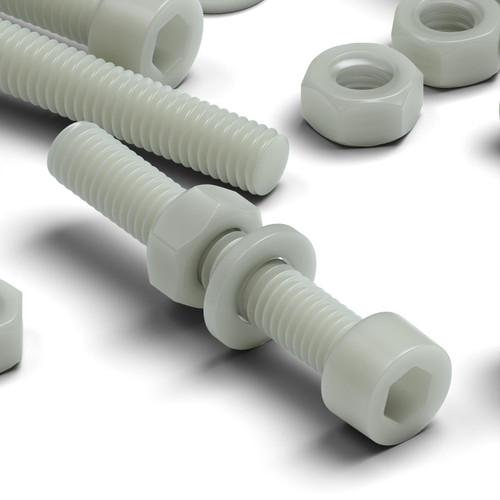

- 50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / 50% GF. Type: Socket Head Bolts. Length: 40mm. Diameter: 6mm. Pitch: 1mm. SKU: 816.
- The addition of 50% glass fibers enhances the heat deflection temperature, enabling the material to perform reliably at elevated temperatures.
- Glass fibers improve tensile strength, stiffness, and impact resistance while reducing the material's susceptibility to creep under load.
- The composite also possesses superior hardness, surface durability, and wear resistance compared to PA66.
- Repeated removal and refitting possible with good resistance to thread stripping in high-torque applications.
Product Summary:

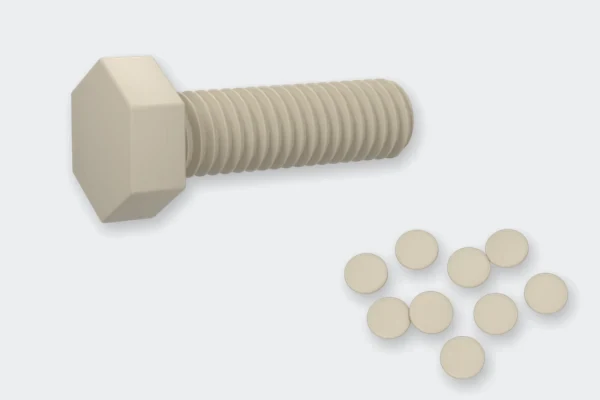

While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF (glass fibre reinforced PA66) is superior to standard PA66, helping the composite withstand higher temperatures before deforming under load. The composite also has reduced moisture absorption compared with PA66. Common applications include automotive components, industrial machinery and consumer goods where high strength and thermal resistance are required. Socket head bolts and screws are also known as socket cap screws, plastic machine screws or plastic fasteners.
| Core Technical Details | |
|---|---|
| Product Type | Socket Head Bolts |
| Size (mm) | M6 x 40mm |
| Material | Nylon PA 66 / 50% Glass Fibre Reinforced |
| Colour | Natural |
| Quantity | 50 |
| Dimensions - mm | |
| Diameter -mm | 6.00 |
| Length - mm | 40 mm (L) |
| Width -mm | 6 mm (W) |
| Thickness / Depth -mm | 6 mm (D) |
| Pitch - mm | 1 |
| Dimensions - Inches Conversion | |
| Length -inches | 1.575 |
| Width -inches | 0.236 |
| Thickness / Depth -inches | 0.236 |
| Pitch - inches | 0.039 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Nylon PA66 50% Glass Fibre — Material Datasheet |
| Product Data Sheet | Nylon PA66 50% Glass Fibre — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Socket-Head.png |
| Bolt Dimensions | Stock Code: CR02312PA66+GF Head/Drive Type: Socket Hex Head Bolt size: M6 x 40 D: 6 mm Pitch: 1 mm L: 40 mm HD: 10 mm HH: 5.85 mm HS: 5.08 mm |
| Nut Dimensions | Stock Code: CR06371PA+GF Material: Polyamide+fiberglass Material Reference: PA+GF/HN Head/Drive Type: Hexagon Nut size: M6 N (mm): M6 HN B: 9.89 mm HN H: 5.05 mm |
| Washer Dimensions | Stock Code: CR06527PA+GF Material: Polyamide+fiberglass Material Reference: PA+GF/W0 Head/Drive Type: Flat Washer size: M6 W0 A: 11.78 mm W0 B: 6.51 mm W0 T: 1.6 mm |
| Width -mm | 6 mm (W) |
| Length - mm | 40 mm (L) |
| Thickness / Depth -mm | 6 mm (D) |
| Diameter -mm | 6.00 |
