Stock code 766

50x Clear Acrylic Slotted Pan Head Screws & Bolts M3 x 20 mm, Nuts & Washers

50x Clear Acrylic Slotted Pan Head Screws & Bolts M3 x 20 mm, Nuts & Washers

The details, at a glance.

  • Thread M3
  • Length 20 mm
  • Material Acrylic / Polycarbonate
  • Colour Clear
  • Pack size 50
Prices
Price per pack £13.49 ex VAT · £16.19 inc VAT
Current Stock:

    Adding to basket… Added to your basket.
    Request a quote

    In stock

    Need another length?

    See all Clear

    Dimensions & documents

    Conformity Safety Polycarbonate (PC) — Material Datasheet Polycarbonate (PC) — Screws & Bolts Datasheet Technical drawing

    Check the fit. Technical specification

    Product type
    Pan Slotted Bolts
    Size (mm)
    M3 x 20mm
    Thread
    M3
    Material
    Acrylic / Polycarbonate
    Colour
    Clear
    Pack size
    50
    Diameter
    3.00 mm
    Length
    20 mm
    Width
    3 mm
    Thickness / depth
    3 mm
    Pitch
    0.5 mm

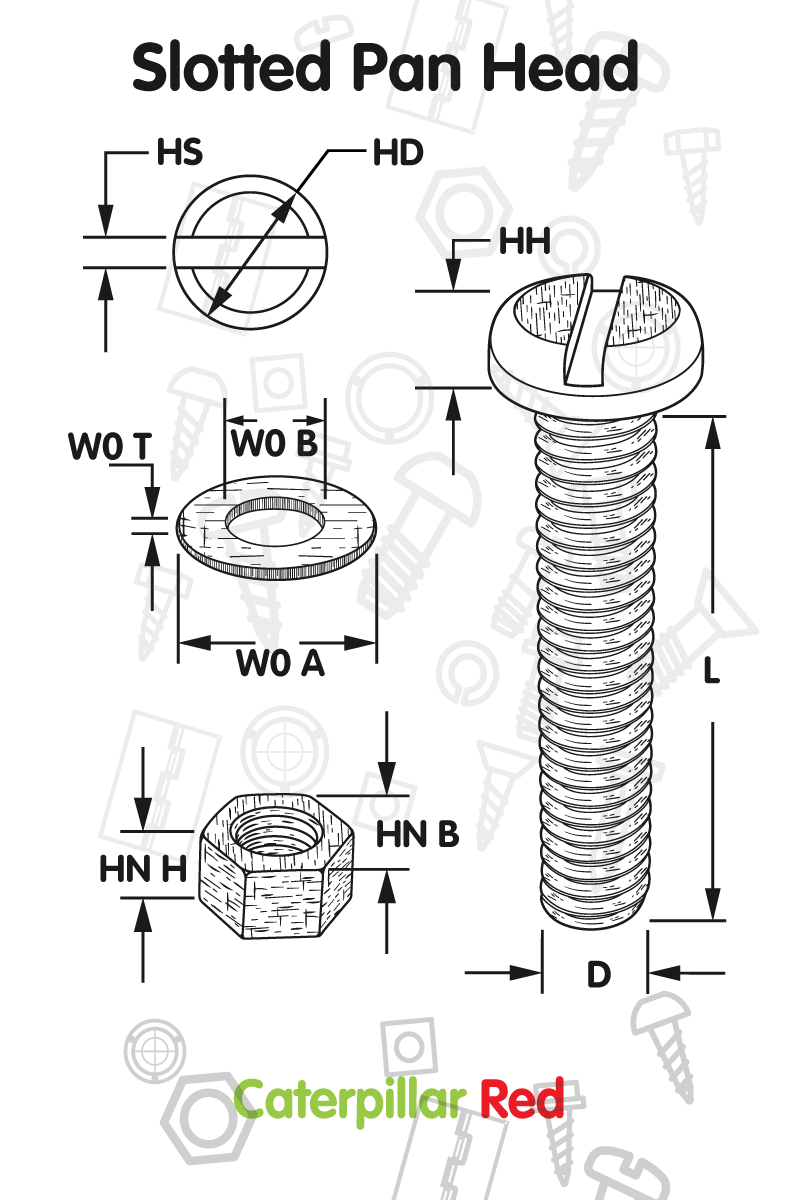

    Bolt, nut and washer dimensions

    Bolt

    Head/Drive Type: Slotted Pan Head Head bolt, size: M3 x 20, D: 3 mm, Pitch: 0.5 mm, L: 20 mm, HD: 5.45 mm, HH: 1.73 mm, HS: 0.93 mm

    Nut

    Material: Polycarbonate, Head/Drive Type: Hexagon Nut, size: M3, N (mm): M3, HN B: 5.41 mm, HN H: 2.28 mm

    Washer

    Material: Polycarbonate, Head/Drive Type: Flat washer, size: M3, W0 A: 6.82 mm, W0 B: 3.29 mm, W0 T: 0.5 mm

    Description

    Features

    • 50x Bolts, 50x Nuts, 50x Washers. Colour: Clear. Material: Acrylic / PC. Type: Pan Slotted Bolts. Length: 20mm. Diameter: 3mm. Pitch: 0.5mm. Head diameter: 5.5mm. Head height: 1.7mm. SKU: 766.
    • Acrylic is a strong, tough, and durable material with good impact strength.
    • Polycarbonate has low moisture absorption and excellent electrical insulation properties.
    • The clear acrylic / PC material offers glass-like clarity for sign mounting and fixing.
    • The slotted drive is fitted and adjusted with a flat-blade screwdriver. Also known as slotted pan screws, slotted machine screws.

    Product Summary

    Clear plastic acrylic / PC slotted pan-head bolts, nuts and washers are supplied as 50 of each. The bolts are M3 x 20 mm with a 0.5 mm thread pitch. They can be used for sign mounting and fixing. The slotted pan head is fitted with a flat-blade screwdriver. Acrylic and polycarbonate are similar thermoplastics often used interchangeably. Acrylic gives good strength and UV resistance; polycarbonate gives higher impact and heat resistance.
